Diamond-defect NMR monitors a surface reaction

The study of surface chemistry has always involved a bit of a paradox. Chemical processes at solid–liquid and solid–gas interfaces are ubiquitous in batteries, industrial reactors, biomedical devices, and many other systems. But despite some research at moderate pressures (see the article by Gabor Somorjai and Jeong Young Park, Physics Today, October 2007, page 48 ), most surface-science research tools, such as x-ray photoelectron spectroscopy and secondary-ion mass spectroscopy, work only under ultrahigh vacuum. Not only do they require bulky and expensive pumps and vacuum chambers, but they can’t even access the conditions of greatest chemical and biological interest.

NMR spectroscopy is a time-honored tool for chemical analysis that works on bulk liquids, solids, and solid-like biomolecular systems. By measuring the precession frequency of spin-½ nuclei—for example, hydrogen-1, carbon-13, or fluorine-19—in a magnetic field, researchers can extract exquisite chemical information and even reaction dynamics. (See, for example, Physics Today, October 2019, page 21 .) But because a two-dimensional surface contains fewer molecules than the three-dimensional bulk, conventional NMR isn’t usually sensitive enough to study surface chemistry.

An NMR measurement can be made vastly more sensitive by swapping the induction coils of a conventional apparatus for nitrogen–vacancy (NV) centers, a type of point defect in diamond that’s sensitive to magnetic fields. NV-center NMR has been under development for more than a decade, and although it hasn’t yet emerged as a laboratory mainstay, researchers have collected rudimentary spectra from samples a millionth the size of those needed for conventional NMR.

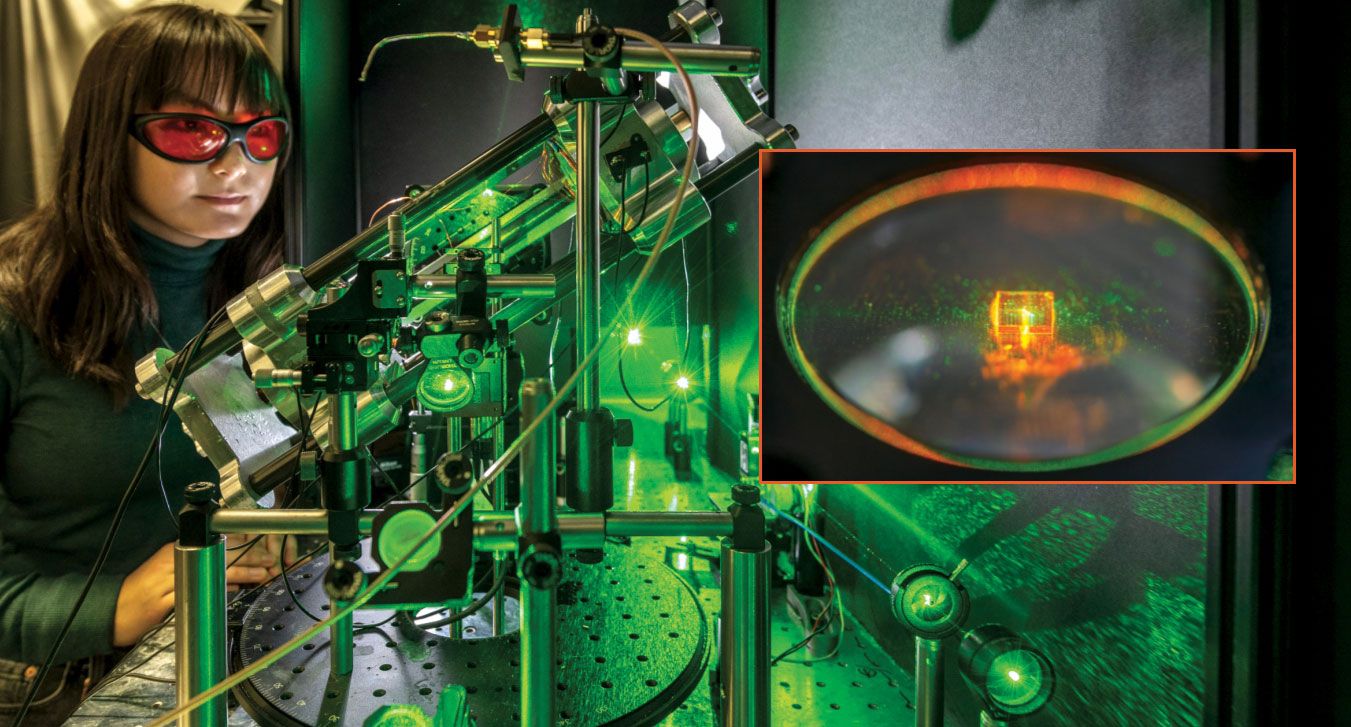

Now Kristina Liu, her PhD adviser Dominik Bucher, and their colleagues at the Technical University of Munich have demonstrated surface-sensitive NV-center NMR. ¹ Their experimental setup, shown in figure 1, is extremely simple by surface-science standards. It requires no ultrahigh vacuum, complicated optics, or sophisticated laser systems. Nevertheless, it can detect molecules on a surface and even monitor a simple surface reaction in real time.

Figure 1.

In related research, Peter Maurer (University of Chicago), Nathalie de Leon (Princeton University), and colleagues are working toward using NV centers to detect and study single proteins and other biomolecules. ² They haven’t yet reached the stage of making NMR measurements themselves, but they’ve shown that with state-of-the-art biophysical techniques, they can tether biomolecules to NV-laden diamond without ruining either the biomolecular structure or the NV-center coherence. Combining their work with that of Bucher and colleagues could bring NV-center NMR into the realm of single-molecule biophysics.

Minuscule magnetometers

An NV center, as the name suggests, consists of a nitrogen atom and a vacancy at two adjacent sites in the diamond crystal lattice. The unpaired electrons bordering the vacancy form a spin-1 atom-like entity. Because the NV center is surrounded by an otherwise spinless sea of carbon, its spin is well shielded from its environment, and its quantum state retains its coherence as well as that of a trapped atom under vacuum. Moreover, NV-center spin states can be easily manipulated with microwave pulses and optically read with an inexpensive solid-state laser. The defects have been explored for applications in both quantum information and sensing. (See the article by Lilian Childress, Ronald Walsworth, and Mikhail Lukin, Physics Today, October 2014, page 38 .)

Under the combined influence of a static magnetic field and a series of RF pulses, spin-½ nuclei in a sample precess, and the oscillating magnetic fields they generate affect the spin-state evolution of an NV center a few nanometers away. With a suitably chosen measurement on the NV center, researchers can identify the precession frequency, which gives them information about the precessing atom’s chemical identity and environment. That’s the basis for NV-center NMR.

In the first proof-of-principle experiments, researchers used NV centers to detect NMR signals from nearby ¹³C atoms in the diamond itself. Probing anything other than the inside of a diamond requires a careful balancing act: An NV center just below a diamond surface can pick up an NMR signal from a molecule just outside the diamond, but it may no longer fully benefit from the protective shielding of the carbon lattice.

The nature of the diamond surface, it turns out, matters a lot. When the dangling bonds at the edge of the lattice are capped with oxygen atoms, nearby NV centers retain their spin coherence, but when the surface is capped with hydrogen atoms, they don’t. Moreover, surface chemists are mostly interested in the chemistry of surfaces other than diamond: To use NV-center NMR for surface chemistry, it’s necessary to find a way to put an NV center in diamond in close enough proximity to the surface of some other solid—all without destroying the defects’ delicate spin states.

Bucher and colleagues and the Maurer–de Leon collaboration both identified the same solution: coating the diamond surface with a nanometer or two of aluminum oxide. The coating is easily done with atomic layer deposition (ALD)—although as Bucher points out, the experimental capabilities for ALD and NV-center NMR aren’t always present in the same lab. The diamonds, although synthetic, are expensive and in short supply (see Physics Today, March 2022, page 22 ). Shuttling them back and forth between the materials science and quantum sensing labs added some logistical challenges to the work.

Both teams found that the ALD coating reduced the NV centers’ coherence time, but only a little, and the defects were still capable of a sensitive NMR readout. And because Al₂O₃ is commonly used as a support material in surface-science experiments, Bucher anticipates that it would be easy to coat with a second layer of yet another material to study the chemistry of almost any surface.

Surface sensitivity

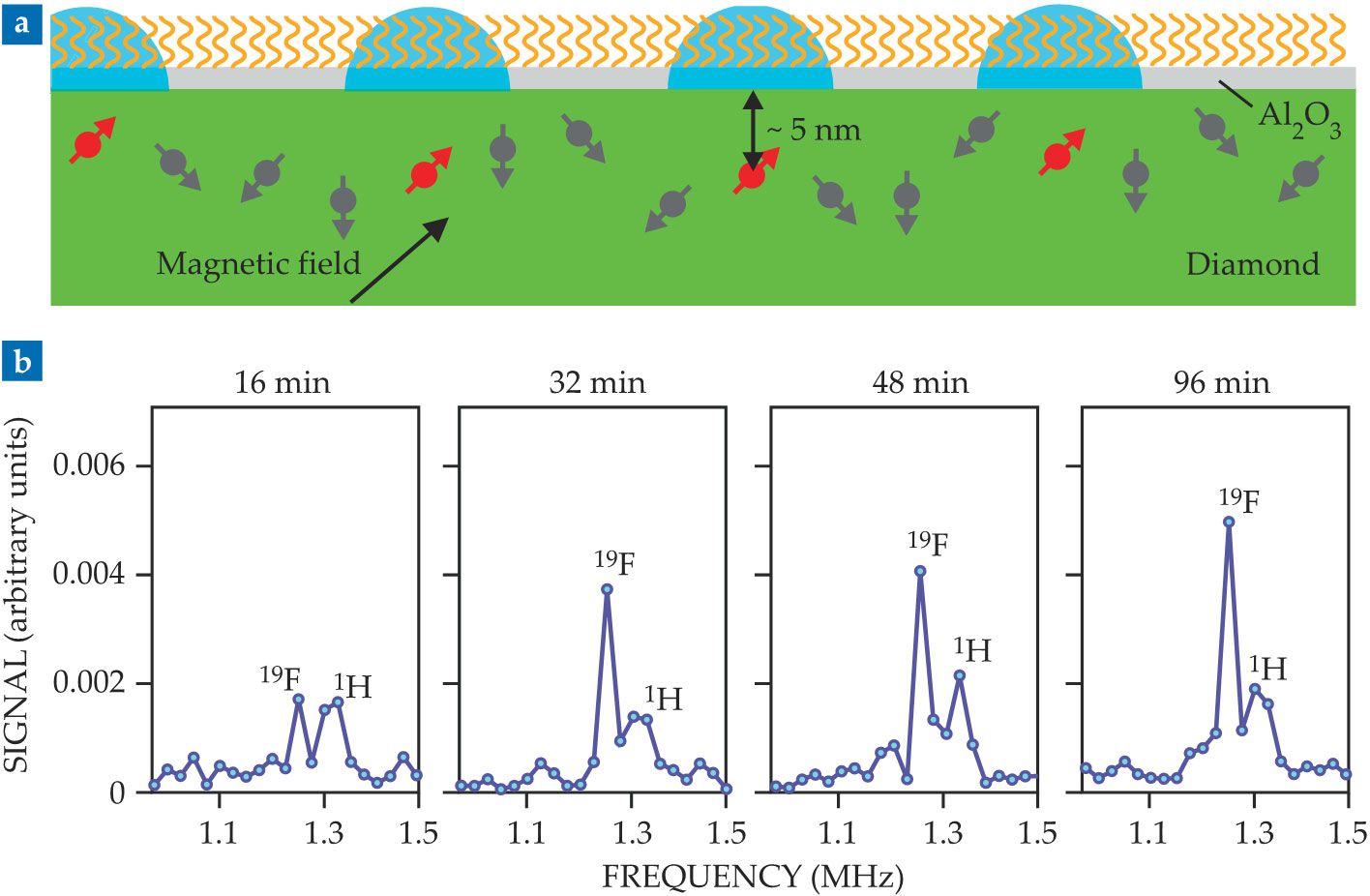

A schematic of the diamond sensors is shown in figure 2a. NV centers (red and dark gray) are implanted in the top several nanometers of a diamond, which is then coated with Al₂O₃. The defects can be oriented in a few different directions, depending on the relative positions of the N atom and the vacancy in the diamond lattice; only those NV centers parallel to the applied magnetic field yield NMR signals. Each one is sensitive to a detection volume above it and can pick up signals from any adsorbed molecules contained therein.

Figure 2.

For their work on biomolecules, Maurer and de Leon were interested not in studying the chemistry of the protein–surface interaction but in exploiting it to hold the proteins in place long enough to study them with NV-center NMR. In a bulk solution, proteins diffuse around randomly, and they spend little time in the NV centers’ detection volumes. A previous experiment on detecting single proteins with NV-center NMR immobilized the proteins by drying them onto the surface. ³ “That showed that the sensitivity is there,” says Maurer, “but the proteins were completely denatured, and their structure was destroyed. The next step is to do the same thing on an intact protein.”

Fortunately, biophysicists have developed a suite of chemical tools, drawing on a concept called click chemistry, for catching and holding biomolecules. A click reaction involves a pair of chemical groups that quickly “click,” or bind together, whenever they’re in close proximity. By placing one group on a biomolecule of interest and the other on a substrate, researchers can reliably join the biomolecule to the substrate.

Maurer, de Leon, and colleagues showed that they could attach half of a click-chemistry pair to an Al₂O₃-coated NV-laden diamond and use it to immobilize biomolecules on the surface. Using optical fluorescence, they showed that the surface-bound biomolecules retained their structure for several days—a promising step toward studying the molecules with NV-center NMR.

Bucher and colleagues, for their proof-of-principle surface-chemistry experiments, used fluorine-rich molecules and focused on detecting their ¹⁹F signals, rather than the ¹H (proton) signals more typical of conventional NMR. “We’re avoiding studying protons for now,” says Bucher, “because protons are everywhere—even in the diamond—and it’s not well controlled where the signal is coming from.”

For example, when the researchers monitored the formation of a self-assembled monolayer on the Al₂O₃ surface, they saw a relatively unchanging ¹H peak, as shown in figure 2b, from the H atoms on and in the diamond. But the signal of interest was the ¹⁹F peak, which steadily grew as more of the fluorinated molecules condensed out of solution and bound to the solid surface.

Regaining resolution

Collection of real-time data under chemically relevant conditions is a step forward for NV-center NMR, but Bucher and colleagues’ spectral resolution is in a sense a step backward. In conventional NMR (and even some previous NV-center NMR experiments; see Physics Today, May 2018, page 21 ), there’s not just one peak per element. Rather, a series of fine spectral lines reveals differences in the atoms’ chemical environments—for example, an atom that’s bound to a benzene ring has a slightly different nuclear precession frequency than an atom of the same element that’s not.

Those differences, called chemical shifts, convey highly detailed information about chemical structure, but they’re unresolved in the new work. Says Bucher, “I know chemists are going to look at this and ask, ‘Where’s my chemical information?’”

Such poor resolution is a known issue for NMR on a solid or solid-like system. In an isotropic medium, such as a liquid, molecules tumble around rapidly, and the effect of their orientation with respect to the applied magnetic field is averaged out. But in an anisotropic environment, such as a solid or interface, molecular orientations are frozen in place, and the slight differences in precession frequency from molecule to molecule smear out the spectral lines into an unresolved blob.

There are ways of regaining the resolution in solid-state NMR. For example, spinning the sample at a so-called magic angle with respect to the magnetic field re-creates some of the effect of isotropic liquid tumbling. (See the article by Clare Grey and Robert Tycko, Physics Today, September 2009, page 44. ) But their implementation in NV-center surface NMR would greatly complicate the otherwise simple and inexpensive experiment.

Instead, Bucher seeks to look beyond spin-1⁄2 nuclei to quadrupolar isotopes with spin 1 or greater. In nuclear quadrupole resonance, or NQR, the precession frequencies are primarily determined not by interaction with an external field but by the electric field gradient produced by the surrounding atoms. That is, molecular orientation with respect to the field doesn’t matter as much, and an applied field may not even be necessary. (See the article by Micah Ledbetter and Dmitry Budker, Physics Today, April 2013, page 44 .)

NV-center NQR, therefore, could convey detailed chemical information about a surface without the technical challenges of solid-state NMR. “These are very new ideas,” says Bucher, “but I think that is the future of this technology.”
