The emergent physics of animal locomotion

Moths flitting between flowers on a moonlit night and cockroaches scurrying underfoot are dynamical systems. Like many other animals, they get around with a seeming ease and agility that we humans find hard to replicate in systems we create. It may seem that we ought to know everything there is to know about animal locomotion. But we have yet to meet Richard Feynman’s provocative standard, “What I cannot create, I do not understand.” The failure is not due to a limitation of our engineering abilities; rather, it reflects the difficulty of puzzling out how movement emerges from the physical and physiological systems of organisms. We cannot yet emulate the motility seen in nature nor derive the behavior.

The mystery is not new. In his prescient What Is Life? (1944), Erwin Schrödinger wrote about the possible limits of reductionism in explicating the physics of life and recognized that new principles might arise from examining life at the organism scale:

Today a physics approach to complex systems and a biomechanics approach to living systems are being integrated in the physics laboratory.

Neuromechanics, a science of movement

All animals can move. They (and some plants, fungi, and prokaryotes) have evolved diverse movement strategies that rely on generating stable and maneuverable dynamics even when the world is uncertain, slippery, compliant, or flowing.

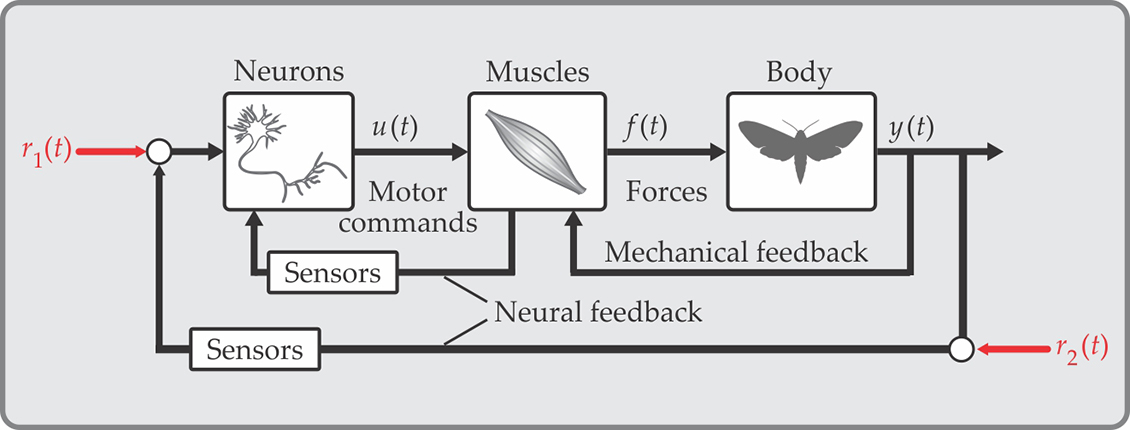

When moving, animals must acquire, process, and act on information from neurons, muscles, the body, and the external environment. Figure 1 illustrates in schematic form how those systems interact. Neural feedback includes reflexes akin to the response that occurs when stretch receptors in muscles detect that one of our knee tendons has been tapped at the doctor’s office. Such feedback also encompasses the visual and vestibular (inner ear) signals and the other ways we sense our bodies and our environments. All those signals are processed by sensory neurons and alter the brain’s activation of muscles. However, the forces that muscles produce are not simple functions of neural commands: Muscles are also state dependent. Change the strain on a muscle by suddenly extending the joint and the force will change, even without a change in the neural activation. State dependence is not surprising considering that muscle is a complex material made of a fluid-filled, hierarchical tissue composed of millions of microscopic motor proteins arranged into an active crystal.

Figure 1.

Neuromechanics considers how movement arises through the interplay of multiple physiological systems and their interactions with the environment around the animal. Understanding how those systems control movement remains elusive in part because no one animal can serve to test all neuromechanical hypotheses. Researchers can, however, turn to the idea that “for such a large number of problems there will be some animal of choice, or a few such animals, on which it can be most conveniently studied,” as August Krogh wrote in his 1929 American Journal of Physiology article, “The progress of physiology.”

To fulfill Schrödinger’s hope for new laws of organisms, we can discover themes in individual well-suited exemplars, as Krogh’s principle would encourage. But we also can systematically relate the dynamics of movement across many species and explicitly incorporate the shared evolutionary history of organisms. We can also hope, with experimental input, to determine general principles that span organisms and that could translate even to nonbiological systems such as robots.

The interface of physics and organismal biology has both precedence and promise. The field of neuromechanics is quite mature, and a comprehensive review would neither be fruitful nor serve to motivate the physicist who has not been exposed to the field. Rather, I’ll share a few examples, some of which motivated my own research. After exploring the insights provided by those examples, I’ll turn to emerging frontiers. Throughout this perspective, I will highlight discoveries and examples that come from studying the world of insects, a group of animals with incredible diversity and, in particular, a wide range of locomotive behaviors. Insects are not particularly simple, especially from a physics perspective, but they are relatively small, have short generation times, and are amenable to many established and emerging experimental tools.

Insect flight and unsteady aerodynamics

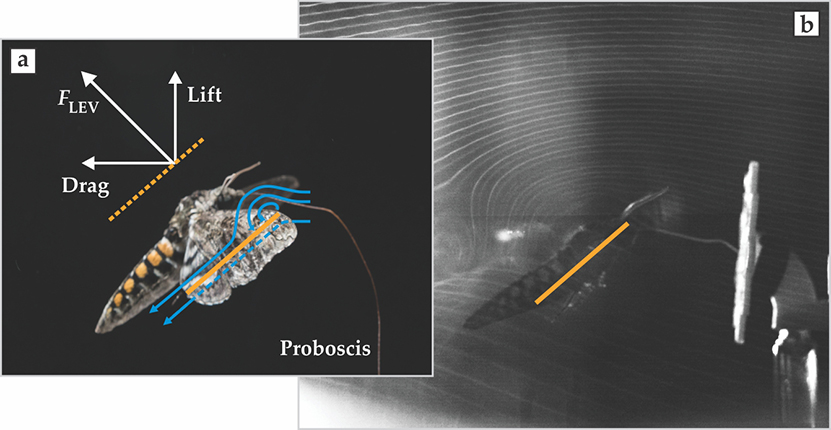

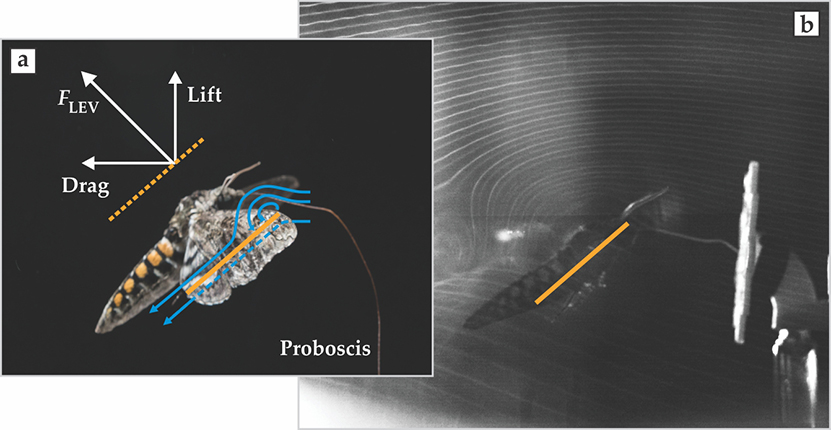

The images on page page 34 and in figure 2 both show a hovering moth. Notice that the wings are at extremely steep angles of attack, as is true for most insect and hummingbird flight, especially while the animal is hovering. At such high angles, it would seem inevitable that the flow would separate from the wing and lead to turbulence and stall. How does an insect then stay aloft? It turns out that the unsteady flow over the insect’s wings starts to separate but then reattaches to create regular coherent structures—vortices that are bound to the wing—that help the insect produce lift.

Figure 2.

The story goes back to the 1970s when zoologist Torkel Weis-Fogh examined the chalcid wasp (Encarsia formosa) and discovered a new mechanism by which small animals with flapping wings generate the lift they need to hover and maneuver. ¹ At the end of the wasp’s upstroke, the insect’s wings clap together before separating and flinging outward, a maneuver that allows air to refill the vacated space. It was applied mathematician James Lighthill who characterized the mechanics behind the clap-and-fling action. ² The key idea is that the separation of two clapped wings creates equal and opposite circulations on each wing during the fling. Those trapped circulations produce added lift because the air flowing over them has to be directed downward toward the surface to reattach and keep the vortex in place. The redirection effectively sucks the wing normal to its surface and thus creates lift and drag. Lighthill noted that it was “surprising that a fundamentally new mechanism of lift generation in inviscid two-dimensional flow should be discovered six decades after the work of Prandtl, Zhukovski, Kutta and Lanchester.”

It turns out that most flapping animals do not clap their wings together fully, so the specific clap-and-fling behavior described by Weis-Fogh and Lighthill cannot generally explain insect flight. However, the seeds of future discovery were sown by the insights that flow remains bound to wings and that time-dependent aerodynamic mechanisms might be critical. Still, not until more than 20 years later, in the late 1990s and early 2000s, was a more general mechanism identified for how insects fly: As the wing moves, the flow around it rolls up to produce a bound vortex on its leading edge ³ as shown diagrammatically in figure 2a and with smoke visualization in figure 2b. Those leading-edge vortices (LEVs) enhance lift via a similar mechanism to Weis-Fogh’s clap-and-fling. LEVs have since been shown to be ubiquitous in biological systems; they are important in the flight of small birds, bats, and even the spinning helicopter seeds of maples.

But LEVs are far from the end of the story. ⁴ Other unsteady aerodynamic mechanisms may enhance lift and modulate flight forces. During flight, a fly’s wing interacts with the vortex wake shed from the previous wing stroke. The animal may be able to recapture energy from those interactions, a process that would provide a fascinating illustration of how the environment can be used to store and return energy. Also, it remains unclear how LEVs persist or are modified when the animal encounters air that is already disrupted. Nearly all studies about the mechanisms of flight have been performed in still or steadily flowing air. If the moth and other flapping insects and birds rely on binding vortices to their wings, how do they produce, stabilize, and modulate those in environments where the fluid is already unsteady or even fully turbulent?

Simple models, important insights

Emergent behaviors are complex patterns that result from the interactions of components that are simple, or at least simply described, and that don’t display the emergent patterns of the whole. Understanding emergent behavior of physiological systems or whole organisms can be frustratingly difficult. After all, the system components themselves are complex, heterogeneous structures involving neurons, muscles, limbs, and the matter surrounding the animal. Yet in many cases, low-dimensional dynamics models—that is, models with just a few degrees of freedom—sometimes called templates, can describe gaits and movement strategies. ⁵

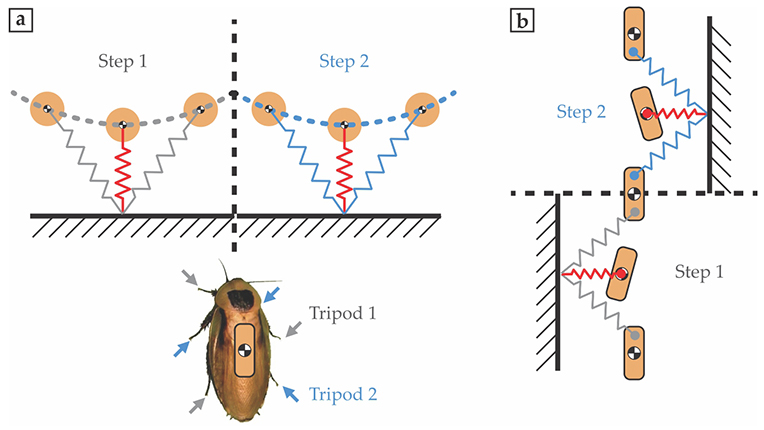

One such template model describes the way in which many animals run, bouncing up and down like a spring-loaded inverted pendulum. ⁶ Such SLIP dynamics, illustrated in figure 3a, well describe many-legged creatures that have two sets of legs that alternate, as in the trot of a dog or the alternating tripod of a scurrying cockroach. Remarkably, once their differences in body size are taken into account, animals ranging from cockroaches to humans to horses all have a similar spring stiffness.

Figure 3.

Dynamics in the lateral plane can be even simpler. As illustrated in figure 3b, the total reaction force on the three legs of a cockroach’s tripod can act like a simple conservative spring force that causes the insect to bounce from side to side and rotate in plane. ⁷

The SLIP and lateral dynamics conserve energy during each of the animal’s steps. An energy-conserving dynamic system should not be stable to perturbations—for example, a small change in external force due to a bump in terrain—because there is no mechanism for dissipating energy generated by means of those perturbations. Yet the simple lateral template can give stable motion. The reason can be traced to the discontinuity in the animal’s gait, when one limb or set of limbs picks up and the next set touches down. At that time, the direction of the spring force suddenly switches, a transition sufficient to stabilize the motion.

Apparently, animals, and robots too, can achieve dynamic stability just by maintaining their steady, alternating gait mechanics. My colleague Robert Full and I tested that notion by putting cockroaches on rough terrain and recording the neural commands they sent to their muscles. ⁸ The two of us found that many of the muscles in the cockroach leg did not change their activation, which suggests that the mechanical motion is indeed stable, at least until perturbations get so large that the cockroach must actively modify its behavior. Moreover, legged robots that simply maintain an alternating tripod gait can run stably over a suitably scaled version of the same rough terrain, even if they have no external sensors. The robots even achieve peak speed if their size-adjusted leg stiffness is similar to that observed in animals.

The simple template models discussed above are not a panacea for the complexity of living systems. They are a starting point. Their simplicity fails to capture many specifics of how animals move. Damping is critical in most biological movement, robust stability typically requires neural feedback in some measure, and control of movement depends on the interaction of limbs with their surrounding environment. Scientists are just beginning to understand the physics of what happens when moving, deformable bodies encounter a nonrigid terrain with high friction. Template models do, however, provide important insights that must be embedded into more complex models. The key is to understand the scales at which new dynamical features emerge.

Quantitative patterns of behavior

Many fewer physicists have tackled problems in macroscopic or even mesoscopic living systems than have contributed to understanding those systems at the molecular and, more recently, cellular level. In the past, that reluctance may have had much to do with cultural and technological limitations. One of the most significant constraints on linking physics to locomotion was the challenge of capturing complex movements with sufficient scope and precision to extract quantitative patterns. As high-speed imaging, machine vision (automated inspection), motion capture, and rapid prototyping have transformed how scientists understand movement, those limitations have started to fall away. It is now feasible to collect thousands of steps, wing strokes, and other motions in a single experiment.

Of course, quantification alone is not sufficient for a science of movement. Using approaches from statistical physics, biophysicists can identify relatively simple patterns and low-dimensional structures present in the movements of animals. ⁹ One recent decomposition of movements showed that a mere four degrees of freedom suffice to capture 95% of the movements of the small roundworm Caenorhabditis elegans—for example, two of the dimensions determine the phase of the oscillatory body wave. Low-dimensional reconstructions of cockroach gaits can separate the time courses of neural and mechanical stabilization responses to perturbations. Machine vision has shown that a surprisingly small set of probability density functions suffice to describe repetitive fruit-fly behaviors such as running or wing grooming and even to capture the differences among individual preferences.

In conjunction with quantitative studies of behavior, researchers can now electrically and optically modify neural and muscular signals to alter behavior. For example, optogenetics involves the expression of light-sensitive proteins that alter the electrical activity of individual nerve cells. ¹⁰ Gene silencing and activation tools let researchers selectively manipulate neurons, muscles, and sensors. It used to be that such tools were limited to a few model organisms, but the range of accessible animals is expanding thanks to rapid sequencing and genome editing tools such as the CRISPR/Cas-9 toolkit.

More techniques become available every year, and large initiatives are emphasizing the newly accessible data sets they produce. Perhaps largest of all is the BRAIN (Brain Research through Advancing Innovative Neurotechnologies) Initiative, ¹¹ a multibillion-dollar investment by government agencies, universities, and private foundations that will run through 2025. Brains have an enormous number of neurons; even the cockroach brain has 10⁵–10⁶ neurons. The BRAIN Initiative will include efforts focused on developing new technologies and analytical tools and creating atlases of neurons and their connections. The hope is to meaningfully address the question “How does the brain work?” It’s a wonderfully inspiring question, but one that is difficult to answer in view of the many contexts in which brains might operate. How can a physics perspective help scientists understand how complex living systems behave, given the proliferation of methods to interrogate them?

What is needed is a way to move from the large volumes of data provided by our new tools to principles of movement. Three approaches are worth highlighting because they have already had some success and are providing a constructive path forward: experimental manipulation of feedback dynamics, multiscale analysis of living assemblages, and robotic modeling.

Altering feedback dynamics

Ever since Norbert Wiener’s 1948 book Cybernetics, or Control and Communication in the Animal and the Machine, the concept of feedback has been tied to the behavior of many dynamic systems, living and engineered. Feedback occurs when the output of a dynamic process changes the input into that process. It is not usually emphasized in a physics approach to dynamics, but its ubiquity in living systems means it cannot be ignored. Moreover, introducing even simple feedback into a system can have profound effects on both the qualitative and quantitative dynamics of movement. ¹²

Figure 1 indicates several types of feedback. During feedback, we acquire information about what our movements do and compare that data with a reference signal. The information can be gleaned from an internal comparison made in the nervous system; for instance, I might sense where my arm is in comparison to where my brain is trying to position it. Or the nervous system can detect exogenous cues. A moth, for example, relies on such cues when tracking a flower. The input to its visual system is, from an external point of view, the difference between the motion of the flower and the moth’s own movement. The moth’s task is to make that difference vanish.

Over the past few years, neuromechanists have begun systematically to explore function and mechanism by changing the structure or context of feedback. An example I was involved with ¹³ featured the twilight flying hawk moth shown on page 34. The moths get their name from the maneuverability they show in flight, even in very dim light. As light levels fall, the insects must compensate for a greater than million-fold reduction in the number of photons impinging on their visual system. Adjustable lens overlap in their compound eyes allows them to integrate light over greater regions of space, but their specialized eyes alone likely cannot handle such a dramatic intensity drop. For that reason, neuroscientists have long suspected that the moths slow their neural processing. The slowdown would allow greater temporal integration of light; it’s analogous to increasing the exposure time on a camera. However, the greater integration time means reduced temporal sensitivity, so the moths would have a harder timing detecting rapid motion.

To test the idea, my colleagues and I observed moths tracking robotic flowers at different light levels. By using simple feedback dynamics, we could factor out the moth mechanics and isolate the change in neural processing due to a drop in light intensity. We found that moths do in fact slow their processing to increase sensitivity, but only to the extent that they can still accurately track flower movements below about 2 Hz. That seemed odd until we took videos of moth-pollinated flowers blowing in windy environments and found that nearly all flower movements occur at frequencies just below that threshold. The moths, it seems, match their neuromechanics to the dynamics of their preferred flowers.

Multiscale physics of living assemblages

Brains, muscles, and other physiological systems are organized into multiscale networks. That network structure can lead to unexpected emergent dynamics, especially when network subunits are active—that is, capable of producing forces on their environment. Experiments, simulations, and analyses that connect processes at multiple scales are cutting through the difficulty of understanding aggregations, even of heterogeneous living components.

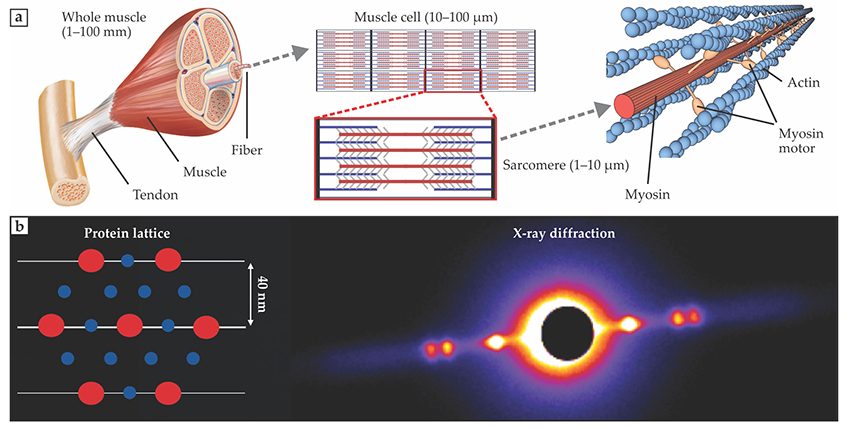

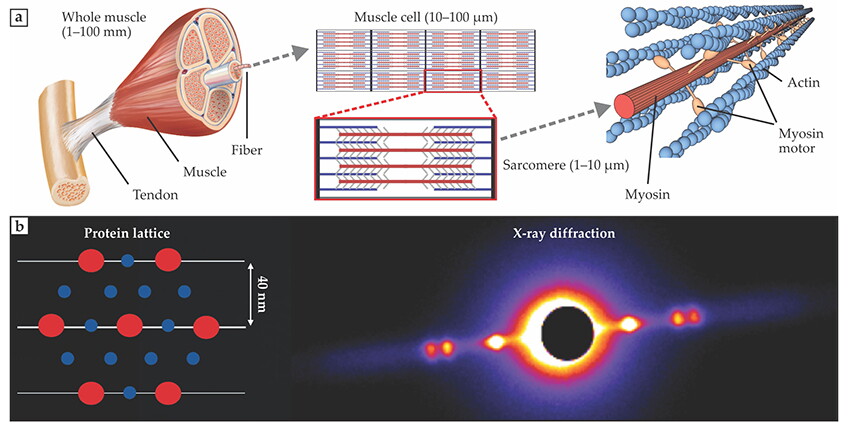

Consider, as a specific example, the structure of muscle, nature’s most versatile actuator. As shown in figure 4, muscle is an active hierarchical material whose structure is so regular that living muscle will produce diffraction patterns when exposed to narrow beams of high-energy x rays. ¹⁴ Actin and myosin, the protein filaments underlying contraction, are organized into a regular lattice at a scale of 10–100 nm. Those lattices, in turn, organize into arrangements called sarcomeres, which have a size in the range of 1–10 µm; a cell can have anywhere from a single sarcomere to several hundred.

Figure 4.

A muscle can include billions of individual molecular motors that grab onto and constrict the filamentary lattice or put the filaments under tension. From x-ray imaging, we have learned that a mere nanometer change in lattice spacing can dramatically change the macroscopic behavior of muscle. For example, cooling the temperature of the moth’s main flight muscles by as little as 10 °C can lock up the lattice and cause a muscle that acts like a motor when warm to store and return energy like a spring when cool. With the help of 3D simulations, biophysicists are beginning to connect the macroscopic behavior of a muscle to the collective mechanics of individual molecular motors organized in a hierarchical structure. ¹⁵

Collective action is also important outside the confines of a single living organism, particularly when organisms behave in aggregations. Flocking and schooling are perhaps the best-known examples of such collective behaviors, and they have interesting energetic and ecological consequences. Other collections of active biological agents manifest a diverse range of emergent properties and behaviors. Some aggregations allow organisms to adopt remarkable material properties and manipulate their environment. ¹⁶ In the insect world, colonies of ants form rafts and bridges that allow them to span gaps and survive floods. The collective action of honeybees can control the fluid dynamics of the hive and thus aid in the ventilation of their home.

Robophysics

Robots are becoming ubiquitous and are even finding their way into the physics laboratory. Robophysics is the use of robotic physical models to examine a principle of movement or control without having to deal with the complexity and experimental constraints of living organisms. Robots have already transformed the study of organismal biology and are now helping physicists make sense of active, motile systems—living, as in the examples shown in the top panels of figure 5, and inanimate. (See also reference and the Quick Study by Yang Ding, Chen Li, and Daniel Goldman, Physics Today, November 2013, page 68 .)

Figure 5.

Early on, robotic models revealed new biology and new physical mechanisms in studies of animal movement in fluids. ¹⁸ Aquatic swimmers were some of the first systems to be explored from a robotic modeling perspective. James Gray’s 1936 attempt to reconcile the power of dolphin locomotion with the high drag of hydrodynamic models sparked many decades of examination into drag reduction in turbulent boundary layers. Ultimately, though, the paradox he raised was resolved with improved imaging and a better understanding of muscle power production. Nonetheless, discoveries about animal hydrodynamics have inspired several generations of fish robots and even new wind turbine designs based on the flukes of the humpback whale.

More recently, the role of LEVs on insect wings was rigorously explored through the use of a robotic model of fly wings scaled up and dipped in mineral oil to maintain a Reynolds number comparable to that of living flies. And just within the past couple of years, controlled flight and stable hovering have been engineered in a centimeter-sized aerial robot with a mass of 0.01 g.

Robophysical models have become an important complement to theory and conventional simulations and experiments. They have even brought forth a new field, terradynamics, which addresses how motile systems interact with a complex granular medium such as sand, snow, or mud. Studies have revealed how snakes sidewind, how sandfish swim through sand, and how early legged animals might have first crawled up on muddy shores. As a consequence of the deeper understandings they have provided, robotic models have often inspired engineering advances as well.

What really marks the maturation of robophysics is the proliferation of tools that lower the bar for the creation of robotic systems; those include rapid prototyping, 3D and 4D printing, “smart” materials, and cheap, easy-to-learn commercial component systems. A student of physics or biology can now rapidly build a functioning robotic platform to test how compliant legs interact with yielding ground or how flexible wings deform during flapping. We can now create in order to understand.

An opportunity

A physics perspective on neuromechanics looks to extract principles from the dynamic and information-processing properties of moving organisms. For the physicist interested in the workings of nature’s most versatile systems, neuromechanics represents an exciting opportunity. Scientists’ understanding of such macroscopic phenomena as the agile movement of the hawk moth remains incomplete, but we can expect to glean new principles if we can cut through the enormous swaths of data afforded by observing living systems with modern tools. If we can avoid simply reveling in the complexity of the biological world and instead work to understand the relevant features of complex systems, we will find ample opportunity to apply a physics perspective to the study of movement and behavior, even at the level of the organism.
