Force spectroscopy unveils hidden protein-folding states

For 30 years atomic force microscopy (AFM) has been imaging surfaces with subnanometer resolution. As a thin, flexible cantilever with an atomically sharp tip is scanned back and forth across the surface, the tip’s vertical position is monitored by reflecting a laser beam off it. The cantilever’s minute deflections reveal the surface topography.

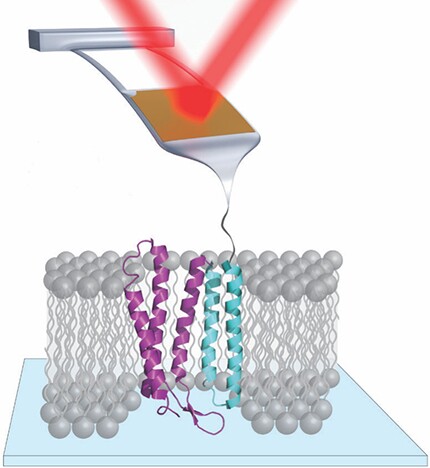

But AFM is not limited to determining where atoms and molecules are—it can also manipulate them. In single-molecule force spectroscopy, for example, an AFM tip attached to one end of a protein, as shown in figure 1, is gently raised to unravel the folded chain of amino acids. From the heights at which the cantilever stalls on its upward trajectory, researchers infer the presence of stable intermediate states of the partially unfolded molecule. ¹ Those states offer clues about the energetics of how the molecule folds into its correct structure to begin with.

In contrast to the atomic-resolution surface images, AFM measurements of protein-folding dynamics have offered only a coarse view. The problem is water: Proteins need to be studied in an aqueous environment, and hydrodynamic drag slows a standard cantilever’s response time to hundreds of microseconds. Any change in the protein’s state that occurs on a faster time scale is invisible to such an approach.

For the past decade, Thomas Perkins and colleagues at JILA in Boulder, Colorado, have been working to develop a cantilever optimized for studying protein folding with high time resolution. Now the JILA researchers have put their most advanced cantilevers to work to probe the folding dynamics of bacteriorhodopsin, a protein that harvests photon energy to pump protons across the cell membrane. ² With 10 times the force precision and 100 times the time resolution of previous AFM measurements of bacteriorhodopsin, they’ve uncovered an intricate protein-folding landscape that had never been seen before.

All that glitters

The perfect cantilever for force spectroscopy needs several qualities. It should move through water easily enough to respond to a microsecond change in the protein’s state. It should be supple enough that a piconewton force produces a measurable deflection. It should be overdamped, so a change in the applied force doesn’t set it oscillating. It should be optically reflective, so the laser signal can be detected. And it should be stable over the course of an experiment, so a given force always produces the same deflection.

Sometimes those requirements are at odds with one another. The easiest way to reduce hydrodynamic drag is to make the cantilever shorter, but that also increases stiffness and reduces damping. Commercial cantilevers come coated in gold to maximize their reflectivity. But Perkins and company discovered that—for reasons not entirely understood—the gold causes the cantilever’s free-standing position to drift over time, which destabilizes force measurements. ³

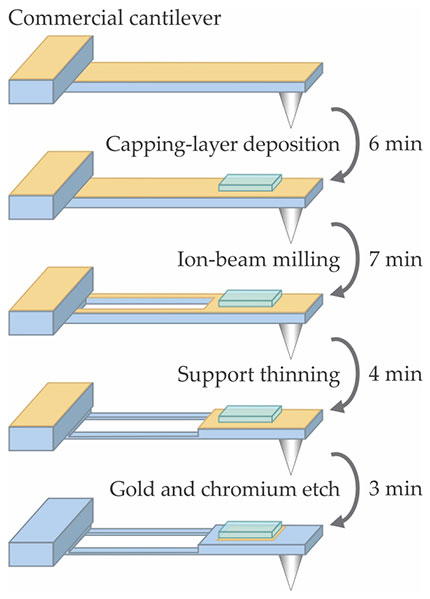

Figure 2 shows the protocol the JILA researchers developed to mitigate those tradeoffs. ⁴ Starting with a commercial cantilever, they apply a transparent capping layer to protect part of the gold coating. Next, they use a focused ion beam to cut away part of the cantilever, thin the supports, and etch away the unprotected gold and underlying chromium. The process is quick and straightforward, says Perkins: “This set of cantilever modifications was developed by a talented undergraduate, and undergraduates in our lab routinely make these modifications.”

Thus modified, a short (40 µm) cantilever can be used in a standard AFM with no problems. But when Perkins and colleagues progressed to modifying ultrashort (9 µm) cantilevers, they found that the remaining area of gold was too small to reflect the laser beam. So they engineered a new detection-laser module for their AFM system to focus the laser to a sufficiently small spot. ⁵

Bacteriorhodopsin

Although the JILA researchers performed proof-of-principle tests along the way to check their modified cantilevers’ time resolution and force precision, the new work represents their first move toward a system of biophysical interest. Bacteriorhodopsin, a protein in the cell membrane of saltwater-dwelling single-celled organisms, is homologous to G-protein coupled receptors (GPCRs), an important class of membrane proteins in more complex organisms, including humans. The receptors are responsible for many types of cellular signaling, and as such, they’re the targets of some 40% of all pharmaceutical drugs.

But the dynamics of GPCRs and other membrane proteins are not well understood, for several reasons. They tend to be larger than the more commonly studied globular proteins, and their structure and function depend critically on the heterogeneous environment of the cell membrane. Unlike many smaller proteins that find their correct folded structures on their own, membrane proteins fold via an intricate process that often requires the assistance of so-called chaperone molecules.

Like GPCRs, bacteriorhodopsin consists of seven helical structures that extend across the membrane. Previous force spectroscopy studies typically found intermediate states that corresponded to the full unfolding of each of those helices. But molecular dynamics simulations predict that many more intermediates should exist.

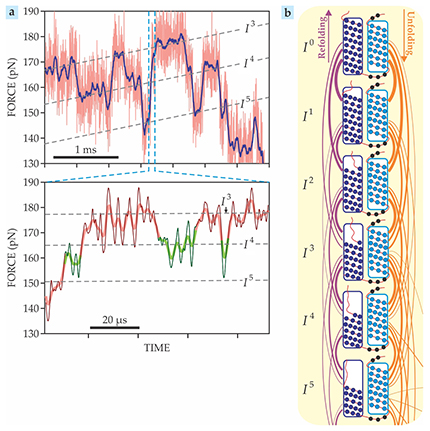

With their improved cantilevers, Perkins and colleagues studied the bacteriorhodopsin helices shown in blue in figure 1. They found a series of 14 distinct intermediates, many of them separated by the unwinding of less than a single helix turn. Figure 3 illustrates the complexity of their observations. The force–time data in figure 3a show the molecule hopping among adjacent intermediates several times a millisecond. Figure 3b sketches the first five intermediates, corresponding to the unfolding of half of the first helix. The thicknesses of the purple and orange connecting lines represent the prevalence of transitions between pairs of intermediates. Notably, transitions were not limited to adjacent intermediates, and both unfolding and refolding transitions were observed.

The surfeit of data is just the beginning; just what it all means remains to be seen. Comments Michael Woodside of the University of Alberta in Edmonton, “As we’ve seen repeatedly in other contexts, an order-of-magnitude increase in resolution often leads to big changes in understanding of the underlying physics. I expect something similar to happen here.”

Off the shelf

Perkins and colleagues’ modified AFM apparatus isn’t the only way to obtain a microsecond view of biomolecular folding. Last year, Woodside and colleagues achieved similar resolution by tethering each end of a molecule to a bead held in an optical trap. (See Physics Today, June 2016, page 14 .) That approach is useful for some applications, but it has the disadvantage of requiring a custom-built setup. Using a commercial AFM instrument, even with a few modifications, is much easier.

And Perkins is hoping for a day when researchers won’t have to make those modifications themselves. “None of our cantilever improvements are covered by a patent or pending patent,” he says, “and there’s no reason why cantilever companies and AFM manufacturers can’t implement 90% of them using wafer-scale manufacturing.” In the short term, he’s collaborating with other groups to demonstrate the cantilevers’ scientific applicability; in the longer term, he hopes those studies will spur demand for manufacturers to commercialize the modified cantilevers.
