Enormous magnetic reconnection event washes over three spacecraft millions of kilometers apart

The abrupt reconnection of magnetic flux lines embedded in plasmas is an important mechanism for transferring energy from the magnetic field to the motion of plasma particles. Magnetic reconnection manifests itself spectacularly on diverse scales: solar flares, auroras from the penetration of solar wind into Earth’s magnetosphere, and containment failures in laboratory tokamaks. And reconnection is suspected in neutron-star quakes, gamma-ray bursts, and jet formation in black-hole accretion disks.

When there’s magnetic field in a plasma, the cyclotron gyration of electrons and ions effectively binds them to individual flux lines. The result is that the field lines are generally frozen into the plasma, riding along with its bulk motion. For example, in the solar wind—a plasma of electrons and ions (mostly protons) from the Sun—embedded magnetic field lines ride Earthward at several hundred kilometers per second.

Magnetic reconnection is a striking exception to the general plasma picture of frozen-in field with charged particles faithful to individual flux lines. When parts of two lines of roughly opposite sense get close enough to each other under special circumstances not completely understood, the two lines can suddenly reconnect so that charged particles lose old traveling companions and gain new ones (see figure 1(a) on page 20).

The newly configured flux lines, now sharply bent, act like slingshots, propelling jets of plasma particles before them as they straighten out to lower the energy of the magnetic field. When whole planes of opposing flux lines come into contact, as in figure 1(b), reconnection can occur coherently over large distances. An important question for plasma theorists has been, How large?

Solar flares and distant astrophysical outbursts can be viewed from afar. But not all reconnection events are that showy. And in any case, observers really want to study large-scale reconnection events in situ. For more than 20 years, spacecraft in Earth’s magnetosphere and on its boundary—the so-called magnetopause—have been recording manifestations of reconnection (see Physics Today, October 2001, page 16 ).

Compared with length scales of particular interest, however, the magnetosphere is cramped and subject to erratically changeable boundary conditions. In the Sunward direction, the magnetopause is only about 10 Earth radii (R _E = 6.4 × 10³ km) away. Furthermore, reconnection events near the magnetopause are dynamically driven by the impact of magnetic field frozen into the solar wind ramming into the magnetosphere.

A fortuitous encounter

Theorists are especially interested in comparing their models with undriven reconnection events in the solar wind itself on scales much larger than the magnetosphere can accommodate. Therefore the recent report ¹ of a 2002 reconnection event in the solar wind recorded in situ by three spacecraft separated by hundreds of Earth radii (see figure 2) is getting considerable attention. Never before had a reconnection event been recorded in such detail over such distances. But it would be three years before Tai Phan of the NASA Wind spacecraft team at the University of California, Berkeley, and Jack Gosling from NASA’s ACE team at the University of Colorado, Boulder, discovered the extraordinary coincidence of the three independent data sets.

On 2 February 2002, Wind happened to be about as far from the Earth–Sun line as it ever gets, and the European Space Agency’s Cluster (actually a tight ensemble of four craft) was making one of its occasional forays outside the magnetosphere. The ACE spacecraft was more than 200R _E upwind of Cluster. All three craft were, more or less, in the ecliptic plane of Earth’s orbit. Compared to the 340-km/s Earthward velocity of the solar wind, their own velocities were negligible.

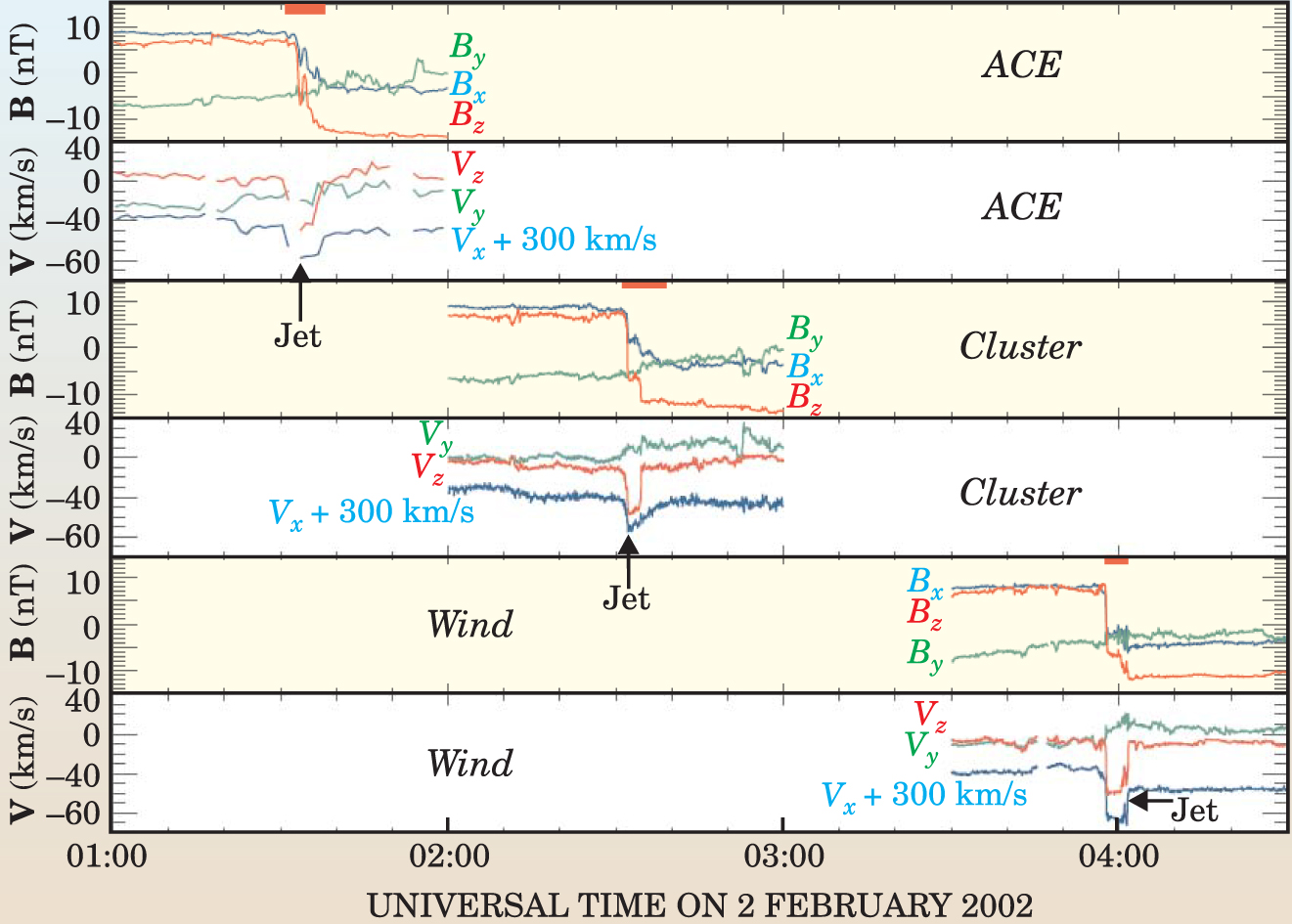

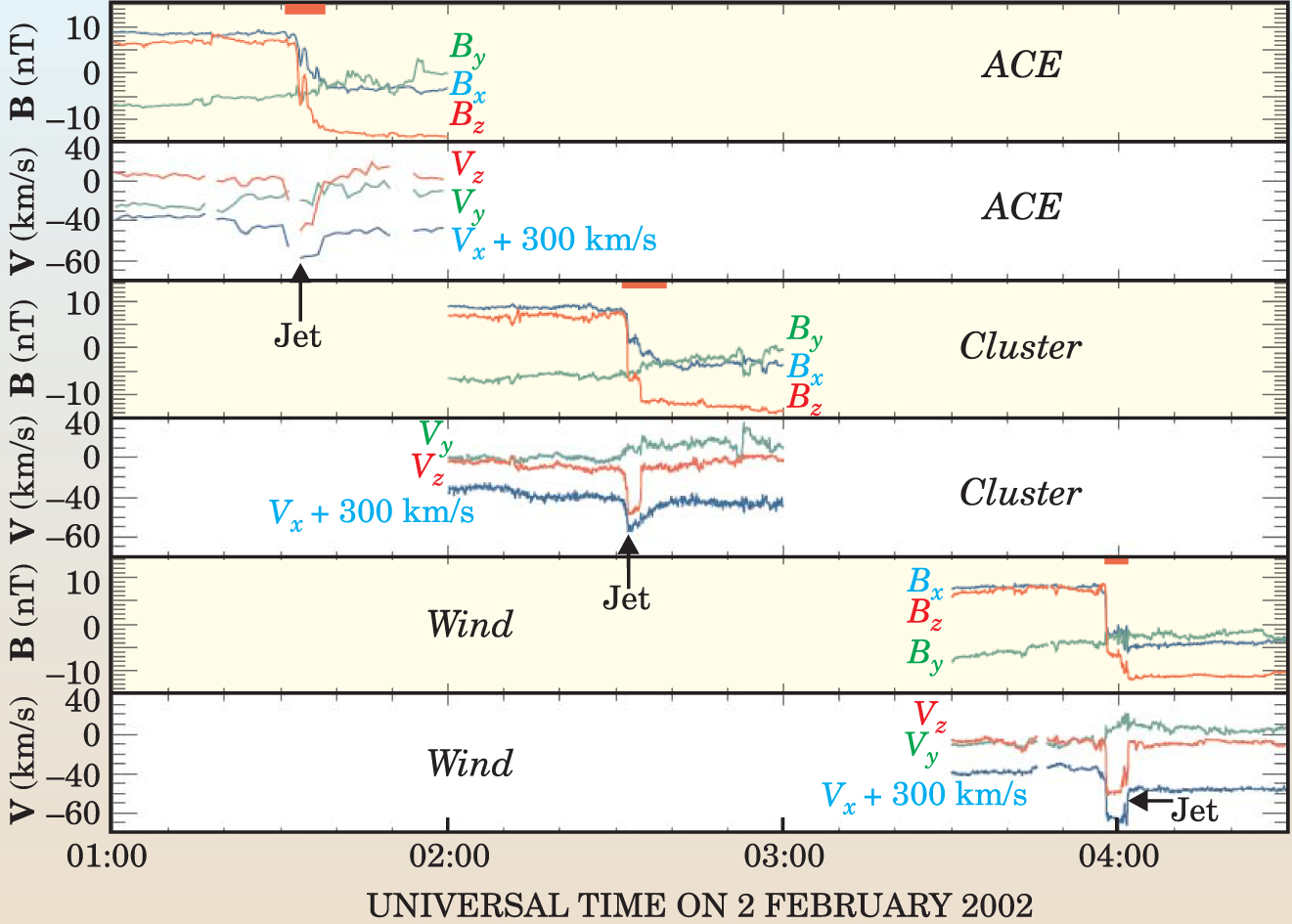

At about 1:30 Coordinated Universal Time, magnetometers and plasma detectors aboard ACE recorded the telltale signal of a reconnection event passing through: an abrupt reversal of one component of the magnetic field, accompanied by a jet of plasma flowing in the direction of the reversing field component and sharply confined to the reversal region (see figure 3 on page 22). The event lasted only eight minutes. But an hour later, Cluster recorded almost exactly the same transient signal. And then, after another hour and a half, it was Wind’s turn.

The X-shaped double plane intersecting the ecliptic in figure 2 is called a bifurcated current sheet. Even in the absence of reconnection, when plasma regions of magnetic flux B pointed more or less in opposite directions are closely juxtaposed, the quasistatic Maxwell equation ∇ × B = j requires that a sheet of current flow normal to B in the boundary layer between the opposing flux regions. Such unbifurcated current sheets are quite common in the solar wind, because regions of oppositely directed magnetic flux on the Sun’s surface frequently launch magnetic field into the wind with abrupt flux-direction boundaries. The bifurcation happens when the sheet is split in two by jets of plasma expelled up and down by reconnection taking place along a limited juxtaposition region—the so-called X-line in figures 1 and 2.

The event reconstructed

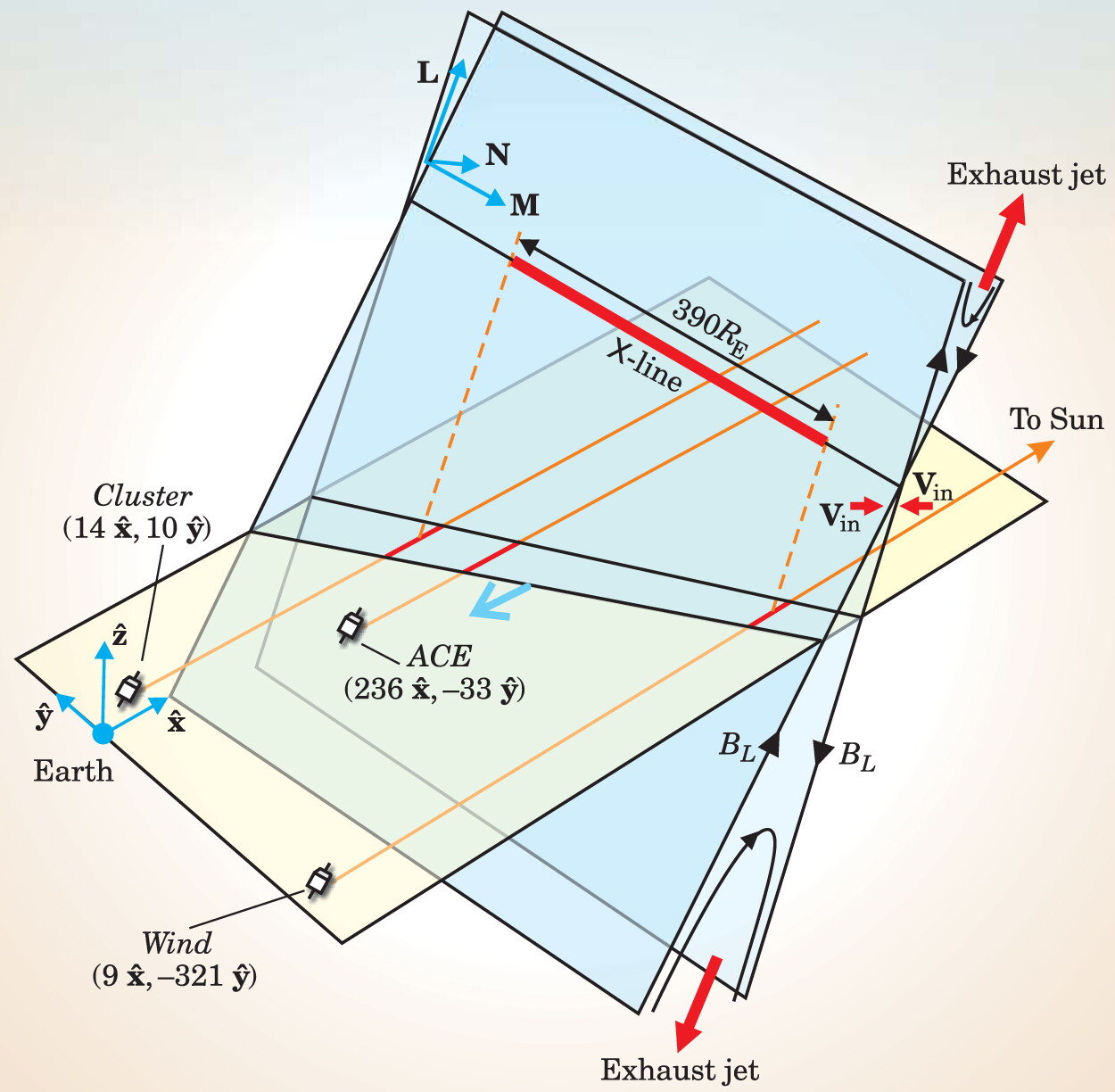

Figure 2 shows the bifurcated current sheet of 2 February 2002 impressively reconstructed from the observations recorded by the three spacecraft. (The bifurcation angle, only about 4°, is exaggerated for clarity.) Embedded in the solar wind, the sheet sailed steadily Earthward at about 340 km/s along the x-axis, which is defined by the Earth–Sun line. The sheet’s normal (N), however, was found to be inclined about 45° from the x direction.

The most striking result of the reconstruction is the inferred length of the X-line, far north of the ecliptic plane, where the bifurcated current sheet joins up and the magnetic reconnection is actually taking place. Anchored in the east by the Wind data and in the west by Cluster, the line along which magnetic flux was steadily reconnecting for at least two and a half hours was at least 390R _E long!

Why is that so impressive? The obvious length to which one compares the X-line is the so-called ion inertial length λ _i, the characteristic distance at which protons decouple from flux lines about to reconnect. Effectively, it’s the thickness of the X-line in the direction normal to the current sheet. Given the local plasma density (about 10 protons per cubic centimeter), λ _i was roughly 60 km.

“This result shows us, up close for the first time, that reconnection events can span huge distances,” says University of Maryland theorist James Drake. “This was a quasi-steady-state process lasting hours and covering at least 4 × 10⁴ λ _i.” In the much denser plasma near the Sun, where λ _i is only about 10 meters, reconnection flares extend over 10⁶ λ _i. And solar flares are certainly not quasi-steady-state events. “But there we can’t hope to get close enough to study the microphysics of reconnection,” says Drake.

Two years ago, Gosling and company discovered solar-wind reconnection events in their archival ACE data. Those were the first in situ identifications of reconnection outside the magnetosphere. But with data from only a single craft, one couldn’t determine spatial extent. So the ACE and Wind teams joined forces to comb their archives in search of events both craft had recorded. The paper by Phan and company is the report of that search, which was expanded to include data from Cluster when it was outside the magnetosphere. The three-craft February 2002 event is the collaboration’s crown jewel. But the paper also reports 27 two-craft sightings. “There were no events seen by only one of the craft,” says Phan, “which implies that, unlike the small, patchy reconnection events we find in the magnetosphere, events in the solar wind typically extend over more than a hundred R _E.”

Confronting theory

The prevailing theory of reconnection in low-density plasmas was introduced by Harry Petschek in the 1960s and elaborated in recent years by Drake, Joachim Birn, and others. Petschek incorporated the acceleration of exhaust by Alfvén waves into an earlier theory by Eugene Parker that could not account for the high speed with which reconnection is seen to occur in solar flares. Alfvén waves are transverse disturbances that propagate in plasma. The exhaust velocity observed in the February 2002 event was, as expected from Petschek’s theory, the Alfvén wave velocity—about 70 km/s in this case. And the theory reproduces well the observed increase of plasma density and temperature in the exhaust jet.

But attempts to replicate the observed rates of so-called fast reconnection by computer simulation based on the unadorned Petchek theory have failed. Birn, Drake, and coworkers appear to have succeeded by adding the usually neglected Hall effect to the magnetohydrodynamic equations. ² The Hall effect, they argue, speeds reconnection by facilitating the requisite decoupling of ions from the flux lines and their still attached electrons. Freed from the ponderous ions, the electrons can drag the lines laterally at high speed into the reconnection region.

Whether or not Hall-assisted Petschek reconnection can sustain quasi-steady-state reconnection over 10⁴ λ _i is a matter of some dispute among theorists. ³ And because of the enormous disparity between the relevant small and large scales, it’s difficult to draw unambiguous conclusions from numerical simulations. So observations are crucial.

The rate at which plasma is expelled in the reconnection exhaust jets has to be balanced by plasma flowing transversely into the X-line and nearby exhaust regions. For the February 2002 event, the data yielded inflow velocities (in the bifurcated sheet’s rest frame) of about 3% of the Alfvén velocity. “We assume that this inflow rate reflects augmentation by the Hall effect,” says Drake, “but we can’t be sure yet.” The present fleet of spacecraft, he expects, will soon provide enough data to determine whether or not the microphysics of large-scale solar-wind events really is Hall-assisted Petschek reconnection

How large can reconnection events get in the solar wind? NASA’s STEREO mission, a pair of spacecraft scheduled for launch this summer, are to be injected into orbits about the Sun that track Earth’s orbit in opposite directions. In little more than a year, they’ll be farther from each other than they are from the Sun. If reconnection events get that big, STEREO should find them.
