The squeezes, stretches, and whirls of turbulence
DOI: 10.1063/PT.3.4725
In his famous Lectures on Physics, Richard Feynman reflected on a “physical problem that is common to many fields, that is very old, and that has not been solved. It is not the problem of finding new fundamental particles, but something left over from a long time ago—over a hundred years…. It is the analysis of circulating or turbulent fluids.” 1 Even today in the age of supercomputers, the need for understanding, modeling, and predicting aspects of turbulent flows has, if anything, increased. Reliably simulating turbulent flows still requires more theoretical advances, and Feynman’s vision of “solving the problem of turbulence” remains elusive.

VATTENFALL/CC BY-ND 2.0

Turbulent flows are characterized by apparently random, chaotic motions. And they are everywhere: They govern the efficiency of gas turbine engines, the workhorses of modern power generation and aerospace propulsion, and of large-scale wind farms, a key technology for renewable energy (see the article by John Dabiri, Physics Today, October 2014, page 66

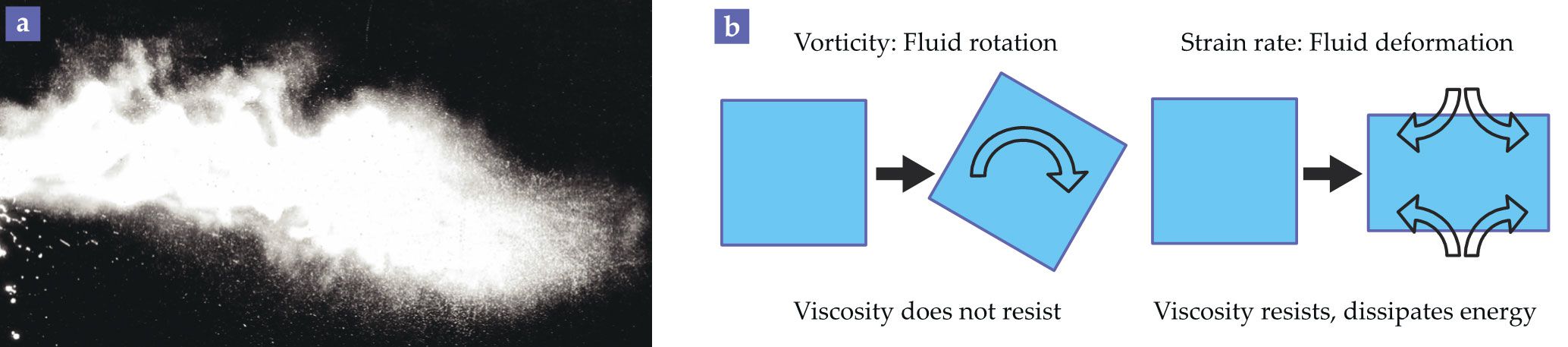

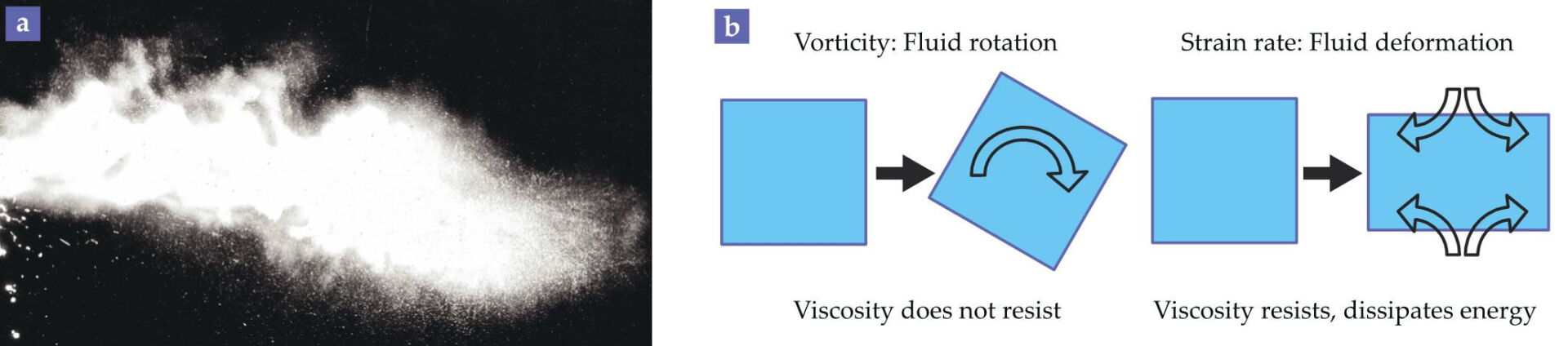

Figure 1.

Turbulent flows, which occur in various systems, share two forms of motion. From the wind turbines seen in the opening image to (a) the sneeze droplets pictured here (reproduced from ref.

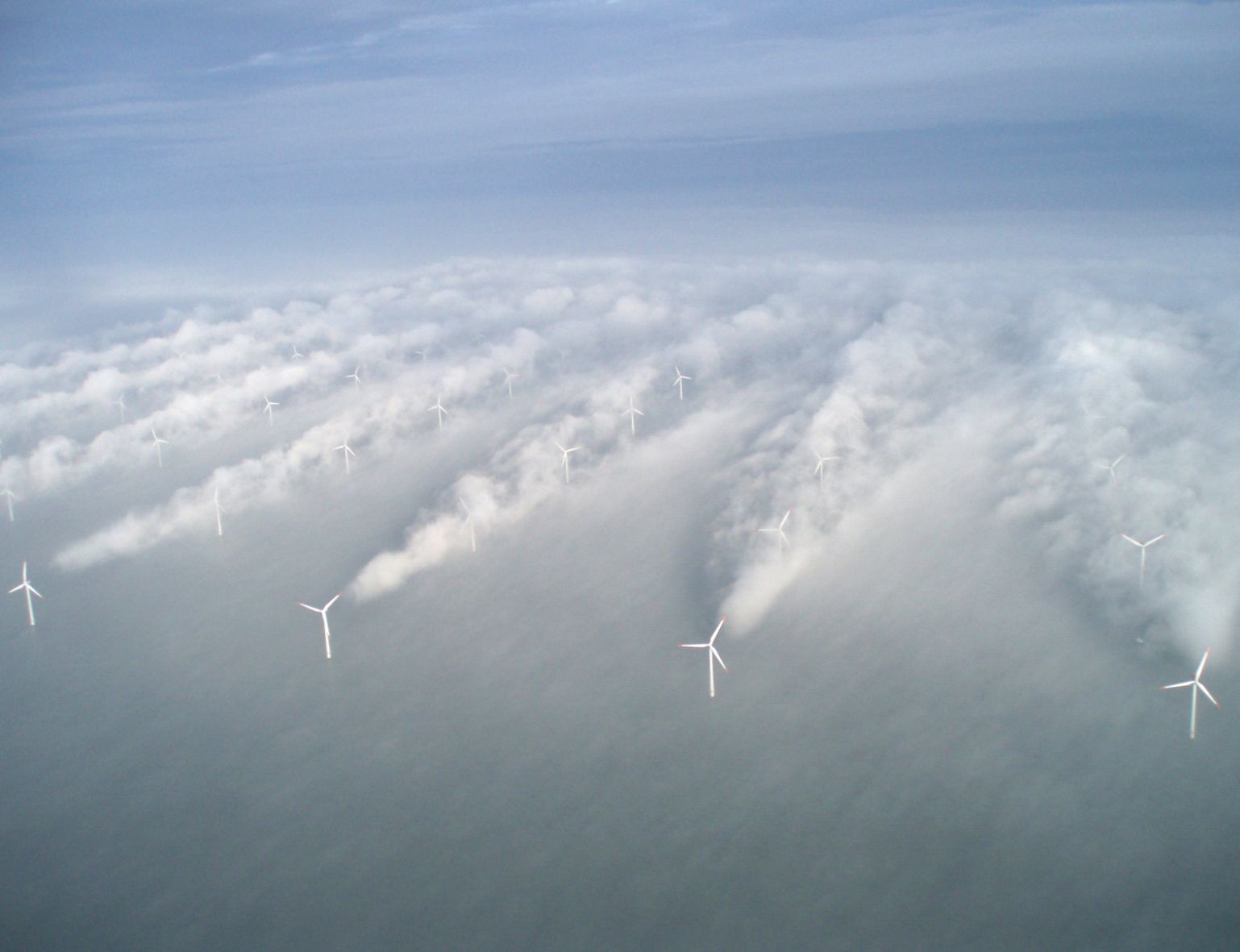

For many turbulent scenarios, analytical solutions to the equations of motion aren’t possible, and the computational cost of simulations is unwieldy. For example, in large arrays of wind turbines, such as the ones shown here, a turbulent wake of lower-speed air forms behind each turbine and diminishes the power output of downwind ones caught in the wake. 3 The smallest turbulent motions in that flow are less than a millimeter, whereas the farm extends for kilometers. A brute-force simulation with millimeter resolution over a kilometer range is not currently possible, nor will it be in the foreseeable future. A similar combination of small and large scales holds true for many important turbulent flows, such as the aerodynamic flow over a car or airplane 4 and the complex flow through airplane engines.
Despite emerging in such disparate physical systems, turbulent flows tend to display remarkably similar characteristics—although different types of turbulent flows have enough unique qualities and behaviors to warrant discipline-specific specialized research. However, the emergence of universal attributes motivates cross-disciplinary effort to analyze and compute turbulence. One such attribute is the enhancement of energy dissipation through the production of motion on a progressively smaller scale. Understanding the physical mechanisms behind that dissipation is vital for constructing accurate theories and computational models of turbulence.
Energy cascade
A detailed description of a turbulent flow involves a three-dimensional field of velocity vectors u, which vary erratically in space and time. Turbulent velocity fluctuations are not completely unorganized in space and time; on closer inspection, they have a degree of coherence not on a set of discrete length scales or frequencies but in an intrinsically broadband manner. The faster or larger the overall flow or the lower the fluid viscosity, the wider the range of length scales and frequencies dynamically active in a turbulent flow. The low viscosities of common fluids such as air and water (
The multiscale nature of turbulence can be thought of as a superposition of motions with spatial coherence of a given length scale. The wide range of scales in a turbulent flow results from one of the most fundamental and universal aspects of turbulence: the energy cascade. It is the process by which kinetic energy generated at large scales is passed successively from smaller scale to smaller scale until the motions are so small that viscosity prevents the formation of even smaller motions because it dissipates the energy into heat. The process occurs rapidly and enhances the overall rate of energy dissipation far above that of smooth laminar flows.
The energy cascade is an important consideration for computer simulations in scientific discovery and engineering design. For the wind-farm example discussed earlier, any attempt at simulation must use coarser-grain resolution than a millimeter and thus end up severely underresolved. To compensate for that lack of resolution, kinetic energy is artificially removed from simulations to mimic the cascade of energy from resolved scales to unresolved ones. Doing so accurately requires understanding the mechanisms behind the energy cascade.
Stretches and whirls
In a 1922 rhyming verse, British meteorologist Lewis Richardson was the first to describe the energy cascade in turbulent flows: “Big whirls have little whirls that feed on their velocity, and little whirls have lesser whirls and so on to viscosity.” 5 The dynamics of “whirls” or eddies—that is, localized rotations in a flow—has since proven key to the phenomenology of the energy cascade.
In the continuum approximation of fluid dynamics, a fluid particle is defined as an effectively infinitesimal volume of fluid at a specific location. In addition to the particle’s velocity, its dynamics is described by two quantities: the vorticity and the strain rate. The vorticity gives the rate at which a fluid particle at a given position is rotating. The strain-rate tensor describes the local rate at which a fluid particle is getting stretched and squeezed. In figure
Mathematically, the vorticity and the strain rate involve the gradient of the velocity vector,
But those two components are physically distinct, as highlighted by their relationship to viscosity. A fluid’s viscosity
Figure

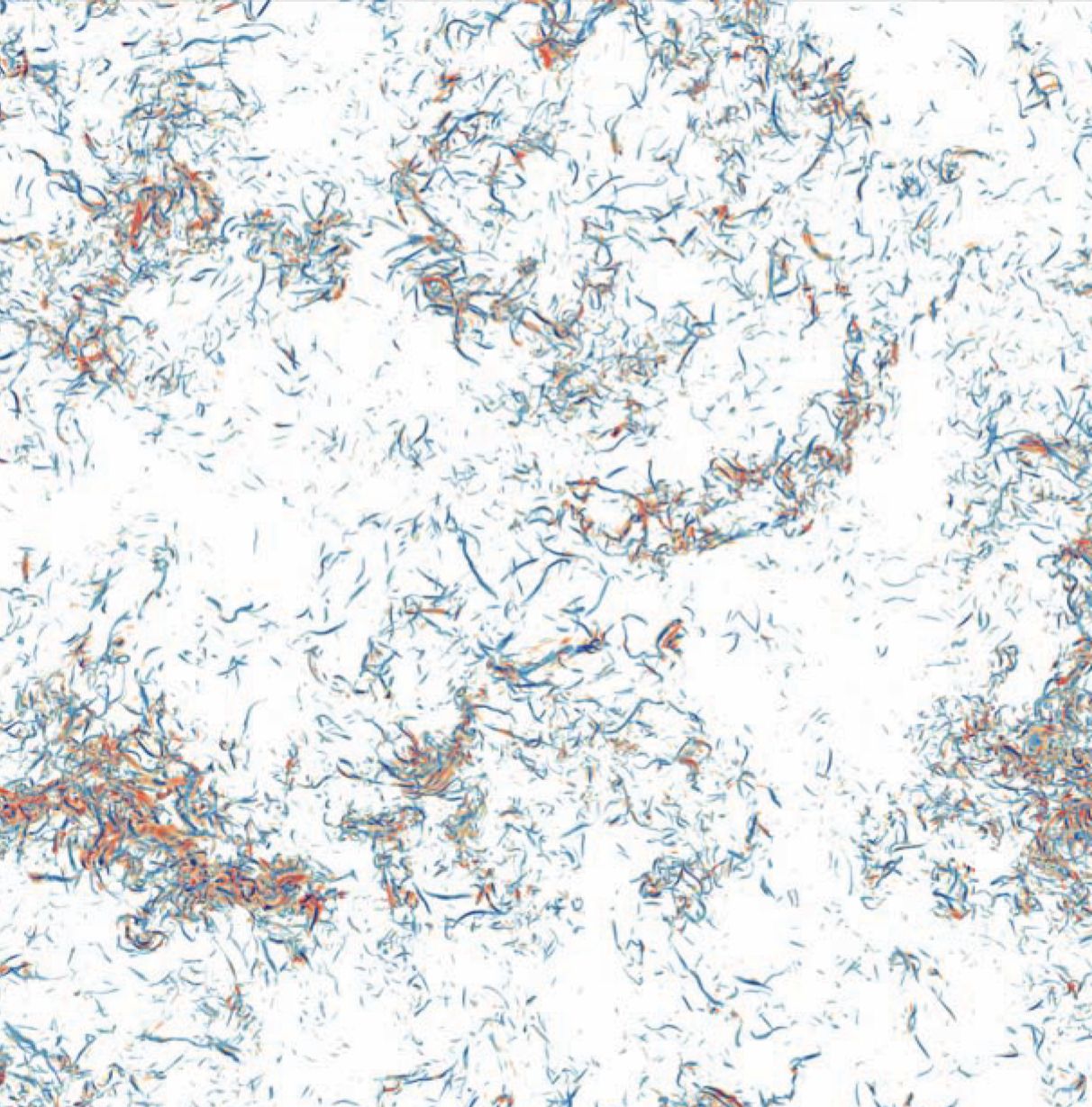

Figure 2.

Stretching and rotating regions. In this turbulence visualization, most of the fluid has low activity, but certain regions are characterized by large-magnitude vorticity (blue) and large-magnitude strain rate (red). (From ref.

Vortex stretching
In the years after the publication of Richardson’s verse, the dynamics of vorticity has commonly been associated with the energy cascade, even though vorticity doesn’t directly cause energy dissipation. A phenomenon known as vortex stretching is widely used to explain the connection. When a vortex—a compact tube-like region of vorticity—is pulled by the fluid’s straining motion along the axis of rotation, as depicted in figure

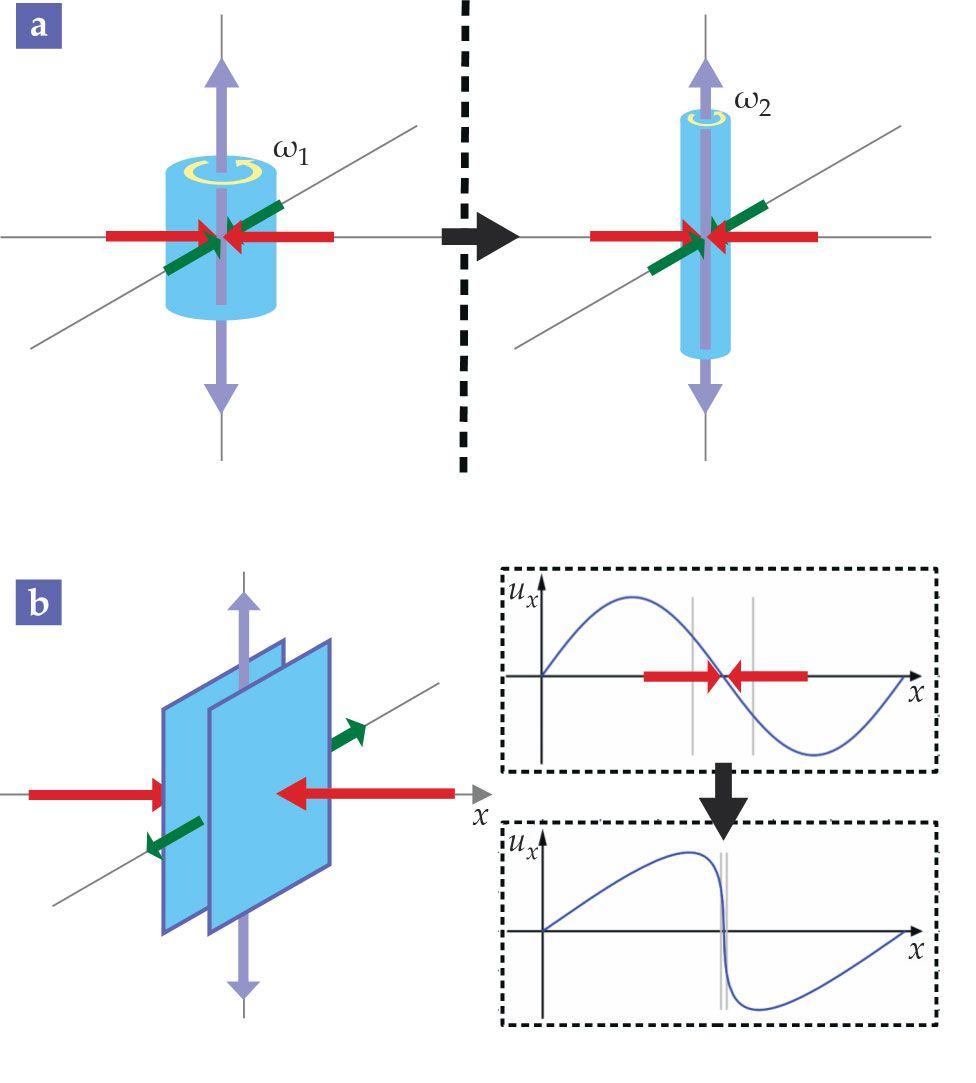

Figure 3.

Energy dissipates at an enhanced rate from a combination of two mechanisms. (a) When under strain (red, green, and violet arrows), a fluid vortex rotating at a rate

The historical explanation for the energy cascade was successive vortex-stretching events, 7 an idea introduced in a 1938 paper by G. I. Taylor. After careful measurements of a model turbulent air system—produced by placing a square grid of cylindrical bars in a wind tunnel—he wrote, “It seems that the stretching of vortex filaments must be regarded as the principal mechanical cause of the high rate of dissipation which is associated with turbulent motion.” 8 A decade later Lars Onsager echoed that assessment in his theoretical treatment of turbulence: “Since the circulation of a vortex tube is conserved, the vorticity will increase whenever a vortex tube is stretched…. This process tends to make the texture of the motion ever finer, and greatly accelerates the viscous dissipation.” 9 Despite the prevailing belief that the energy cascade is driven by vortex stretching, a precise connection between the two has remained elusive until recently, as will be discussed below.
Work in the past few decades has suggested an alternative mechanism called strain self-amplification to explain how energy passes from larger to smaller motions.
10
In strain self-amplification, shown schematically in figure
Navier–Stokes equation
To move from simplified descriptions of vortex stretching and strain self-amplification to the chaotic reality of turbulent flow requires a quantitative description. The Navier–Stokes equation encapsulates the law of momentum conservation for a fluid flow. In the simplest form, it can be written as a partial differential equation of the velocity vector field:
Acoustic waves and electromagnetic radiation propagate at speeds set by either the medium or physical constants, such as the vacuum permittivity. As a result, excitation at a single frequency typically results in a single-frequency field. The momentum of a fluid particle, on the other hand, propagates at the local fluid velocity, which in turn is proportional to the momentum. That property generates the nonlinear term in the Navier–Stokes equation
Analytical solutions aren’t possible in the Navier–Stokes equation for turbulent flows. But insights into the flow’s nonlinear dynamics are possible if the equation is reframed in terms of the velocity gradient field
In 1982 Patrick Vieillefosse demonstrated that for all initial conditions, the restricted Euler equation leads to a singularity in finite time—that is, the velocity gradient magnitude
The velocity gradient’s growth is driven by strain self-amplification, which happens at the rate
But along the path to the singularity, restricted Euler solutions display many traits that are observed in turbulent flow experiments and computer simulations of the full Navier–Stokes equations.
12
Those features account for why
Spatial filtering
A route to make the simulation of turbulence computationally tractable is a simplification known as spatial filtering, which is akin to changing the resolution of an image. A low-pass spatial filter operation is a weighted average over a subregion with characteristic size

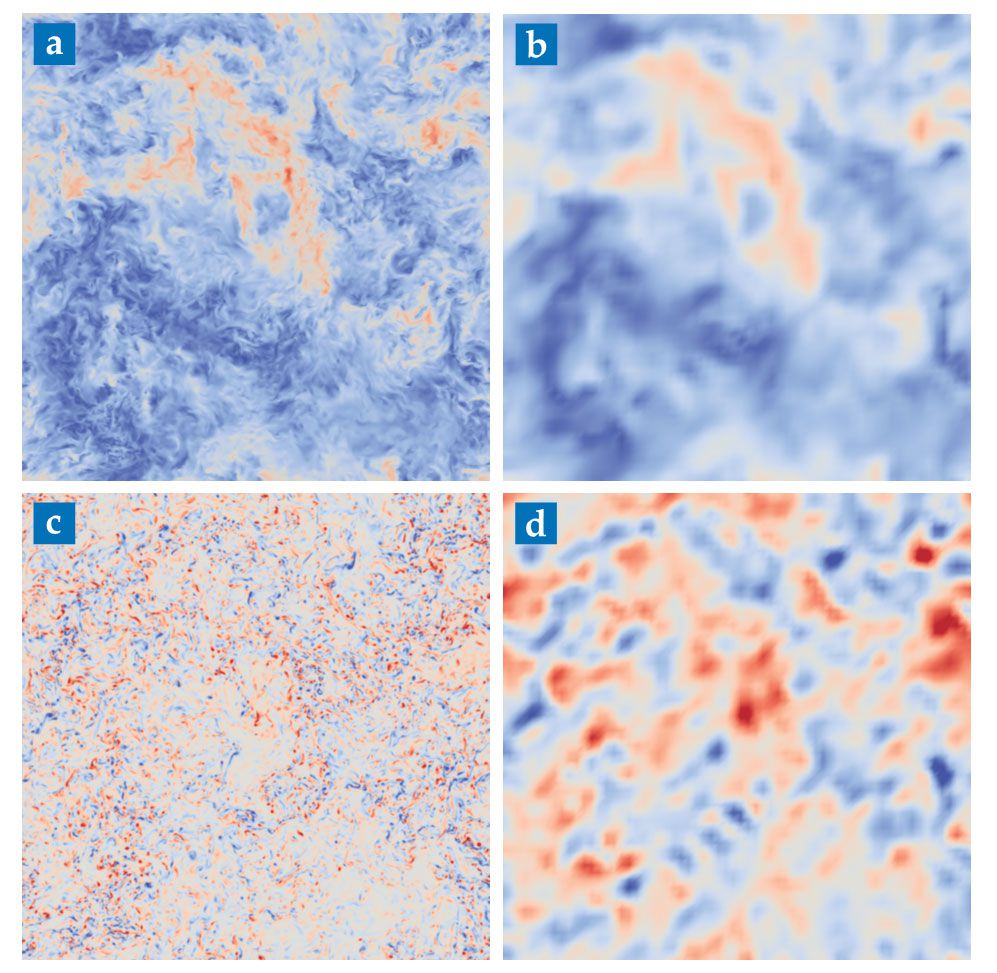

Figure 4.

A stirred fluid simulated in a periodic box displays turbulence in its three-dimensional flow. (a) A 2D slice showing the magnitude of the flow’s velocity (red, high velocity; blue, low velocity) includes coherent motions of various sizes, including very small-scale features. (b) A technique called spatial filtering makes the simulation easier by sacrificing the resolution of small-scale motions. (c) The velocity gradient, typified by the vorticity seen here, reveals the smallest-scale motions in turbulence. (d) Spatially filtered vorticity, and by extension filtered velocity gradients, highlight motions at a chosen length scale. Filtered velocity gradients thus provide a basis for quantifying how energy passes between different scales.

The Navier–Stokes equation can be filtered to obtain a dynamical equation for the smoothed field shown in figure
The gradient of the velocity field highlights the smallest-scale activity in a turbulent flow, as shown by the detailed features in figure
A quantitative description of how turbulent motions at scale
Cascade rate
The energy cascade rate can be written as a sum of five contributions:
The next two contributions to the energy cascade,
Figure

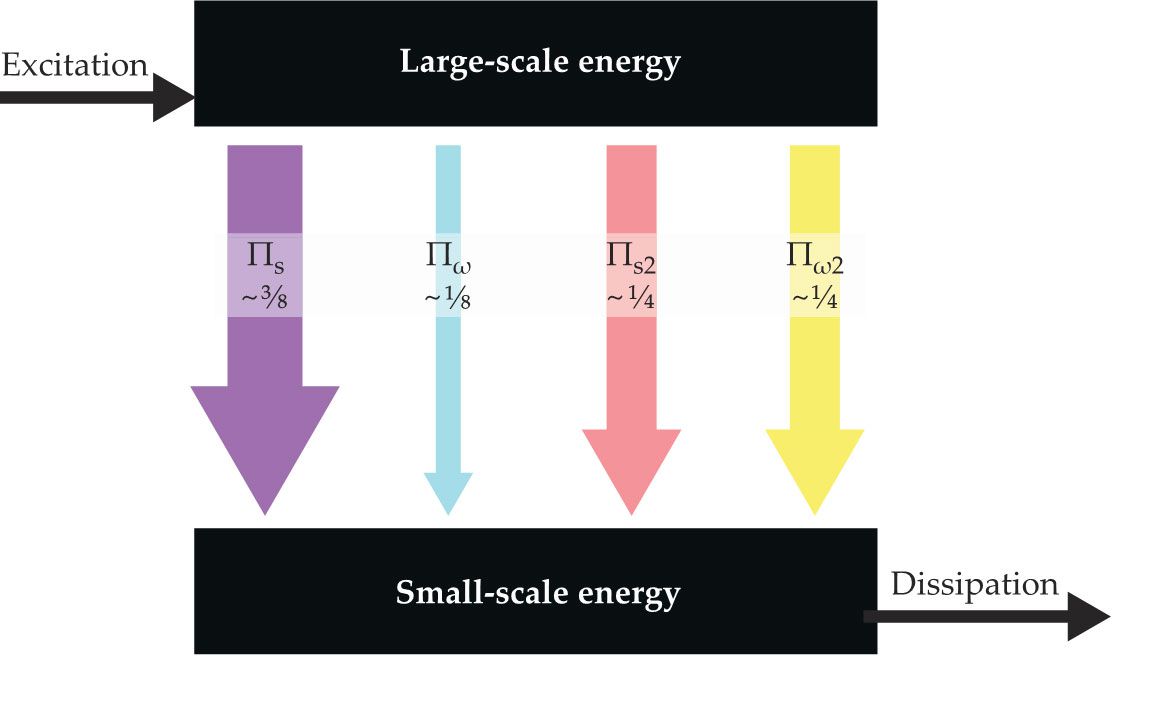

Figure 5.

Kinetic energy introduced at large scales in turbulent flows passes successively through intermediate scales at different rates due to strain self-amplification (

Vortex stretching and strain self-amplification are universal aspects of turbulent flows, so results in simple flows should illuminate modeling efforts for a wide range of complex flows, including wind farms, gas turbine engines, and aerodynamic vehicles. For the time being, experimental measurements of both scaled-down replicas and expensive full-scale systems remain indispensable to scientific discovery and engineering design. But developments in turbulence theory and modeling will help propel computer simulation into a more central role in design and analysis. Many applications will require extending the current models to include additional physical phenomena such as heat and mass transport in combustion engines, flows with density stratification in oceans, compressible flows for high-speed flight, flows in a magnetic field in astrophysics, and flows with small particles and drops.
References
1. R. P. Feynman, R. P. Leighton, M. Sands, The Feynman Lectures on Physics, vol. 1, Addison–Wesley (1964), sec. 3-7.
2. L. Bourouiba, JAMA 323, 11 (2020). https://doi.org/10.1001/jama.2019.13239
3. R. J. A. M. Stevens, C. Meneveau, Annu. Rev. Fluid Mech. 49, 311 (2017). https://doi.org/10.1146/annurev-fluid-010816-060206
4. P. R. Spalart, Int. J. Heat Fluid Flow 21, 252 (2000). https://doi.org/10.1016/S0142-727X(00)00007-2
5. L. F. Richardson, Weather Prediction by Numerical Process, Cambridge U. Press (1922), p. 66.
6. D. G. Vlaykov, M. Wilczek, J. Fluid Mech. 861, 422 (2019). https://doi.org/10.1017/jfm.2018.857
7. H. Tennekes, J. L. Lumley, A First Course in Turbulence, MIT Press (1972).
8. G. I. Taylor, Proc. R. Soc. London A 164, 15 (1938), p. 23. https://doi.org/10.1098/rspa.1938.0002
9. L. Onsager, Nuovo Cimento 6, 279 (1949), p. 282. https://doi.org/10.1007/BF02780991
10. A. Tsinober, An Informal Conceptual Introduction to Turbulence, 2nd ed., Springer (2009).
11. P. Vieillefosse, J. Phys. (France) 43, 837 (1982). https://doi.org/10.1051/jphys:01982004306083700
12. C. Meneveau, Annu. Rev. Fluid Mech. 43, 219 (2011). https://doi.org/10.1146/annurev-fluid-122109-160708
13. A. Vela-Martín, J. Jiménez, J. Fluid Mech. 915, A36 (2021). https://doi.org/10.1017/jfm.2021.105
14. M. Germano, J. Fluid Mech. 238, 325 (1992). https://doi.org/10.1017/S0022112092001733
15. P. L. Johnson, Phys. Rev. Lett. 124, 104501 (2020). https://doi.org/10.1103/PhysRevLett.124.104501
16. R. Betchov, J. Fluid Mech. 1, 497 (1956). https://doi.org/10.1017/S0022112056000317
17. M. Carbone, A. D. Bragg, J. Fluid Mech. 883, R2 (2020). https://doi.org/10.1017/jfm.2019.923
More about the Authors
Perry Johnson is an assistant professor of mechanical and aerospace engineering at the University of California, Irvine.
