Frontiers of surface science

To many physicists, “surface science” means the study of clean crystalline surfaces under ultrahigh vacuum. That narrowly defined field has yielded some interesting results, such as the reconstruction of the structure of surfaces and the recognition that atomic defects are chemically active sites. But a host of new systems and new phenomena are introduced, with many important applications, by so-called buried interfaces: solid surfaces in contact with gases, liquids, or even other solids. Interfaces between solids and aqueous or other solutions turn up in electrochemistry and in biophysics—many such interfaces are found in the human body.

Of particular interest to the two of us, and a focus of this article, is the catalytic behavior a surface can exhibit when in contact with a gas. A molecule adsorbed onto a surface forms chemical bonds with the surface atoms; those bonds change the electronic structure and arrangements of both the molecule and the surface atoms. If the change in structure lowers the energy barrier to a chemical reaction without damaging the surface, then the surface acts as a catalyst.

Nanoparticles, too, can act as catalysts. With the rise of nanosciences, one can now synthesize monolayers of nanoparticles with controlled size and shape, which allows for greater control over the reaction output. That is a uniquely important development because much of 21st-century catalysis science so far focuses on reaction selectivity, or the production of one type of molecule out of several different but thermodynamically feasible products. ¹ In the developing field of green chemistry, reaction selectivity is needed to eliminate undesirable byproducts—waste—in chemical or energy conversion processes. ² The size, composition, and surface structure of the catalyst nanoparticles are important ingredients that control reaction selectivity on the atomic scale.

Concepts uncovered by vacuum surface science

Surface science initially evolved as the study of surfaces under vacuum because so many of the techniques developed to look at surfaces can only operate under vacuum. Such techniques involve probing the surface with a beam of electrons, atoms, molecules, or ions, or—in the case of x-ray photoelectron spectroscopy—detecting of electrons freed from the surface by energetic photons. The electrons and heavier particles have high enough scattering cross sections that they would not survive a trip of any distance through a liquid or gas. Only in vacuum, or at a pressure of less than 10⁻³ torr, is the particle mean free path long enough that those surface probes can be detected. They then allow the determination of the surface composition, electronic structures and oxidation states of surface atoms, and the structures of adsorbed molecules.

Many major discoveries have come out of the study of surfaces under vacuum. Among them is the phenomenon of surface reconstruction, the rearrangement of surface atoms, due to their reduced atomic coordination, into a structure very different from that of the bulk. Surfaces of metals, semi-conductors, alkali halides, oxides, and even ice were all found to reconstruct.

Adsorbed atoms and molecules were found to occupy sites of stronger bonding on surfaces and cause further restructuring of surface atoms. It was discovered that defects, atomic steps, and kinks in the steps are chemically active, making and breaking chemical bonds with adsorbed molecules with near-unity reaction probability. Surface thermodynamic studies using calorimetry and thermal desorption revealed that the heat of adsorption usually declines with increasing coverage due to interactions among the adsorbed molecules. In bimetallic alloys and other multicomponent systems, one of the components was found to accumulate at the surface in a phenomenon known as surface segregation. Molecular- and atomic-beam scattering studies revealed the nature of energy transfer to the surface in a single collision. And femtosecond photon pulses incident on metal surfaces were found to generate energetic “hot” electrons that carry away much of the photons’ energy before relaxation through lattice vibrations can occur.

Surface science under pressure

Since the 1980s, researchers have worked to develop techniques that can probe the structure, composition, mechanical properties, and dynamics of surfaces at high pressure. ³ To a surface scientist, high pressure means anything greater than the millitorr limit of the vacuum techniques described in the previous section. Two techniques that we examine here in detail are high-pressure scanning tunneling microscopy ⁴ and sum-frequency-generation (SFG) vibrational spectroscopy. ⁵ Others include single-crystal catalytic reactors, atomic force microscopy, ⁶ reflection-adsorption IR spectroscopy, and laser Raman spectroscopy. ⁷

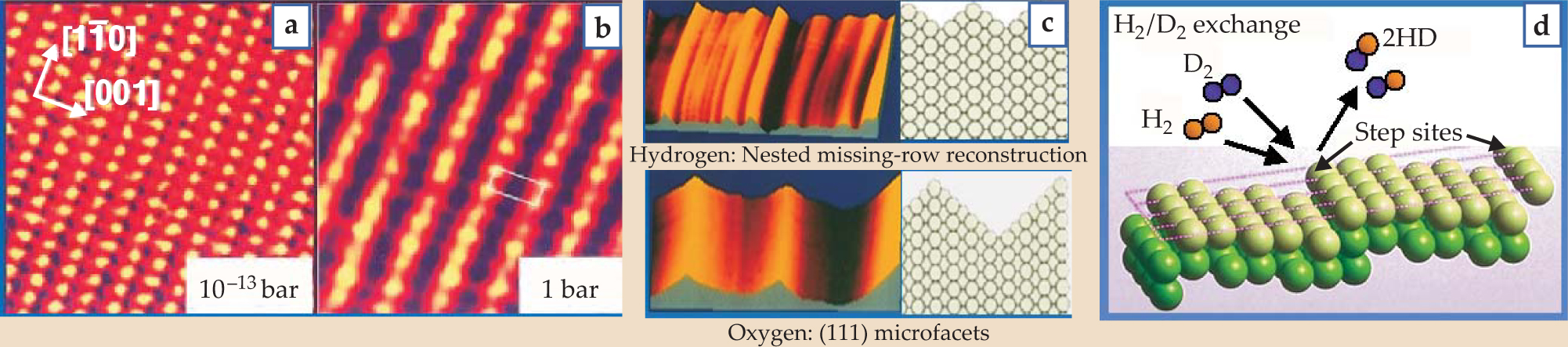

STM images reveal that at high pressures, surfaces form new structures that are not seen under vacuum. As more molecules adsorb onto the surface, the repulsive interaction among them becomes more important and causes the surface to reconstruct in new ways. Flemming Besenbacher and coworkers at the University of Aarhus in Denmark used high-pressure STM to show that at hydrogen pressures greater than 1.5 torr, the copper (110) surface reconstructs into the missing-row structures shown in figures 1(a) and 1(b). Our group found that the platinum (111) surface under 150 torr of carbon monoxide or nitrogen oxide forms new ordered structures not seen under vacuum. ⁴ Figure 1(c) shows the reconstruction of the Pt(110) surface in response to different adsorbates.

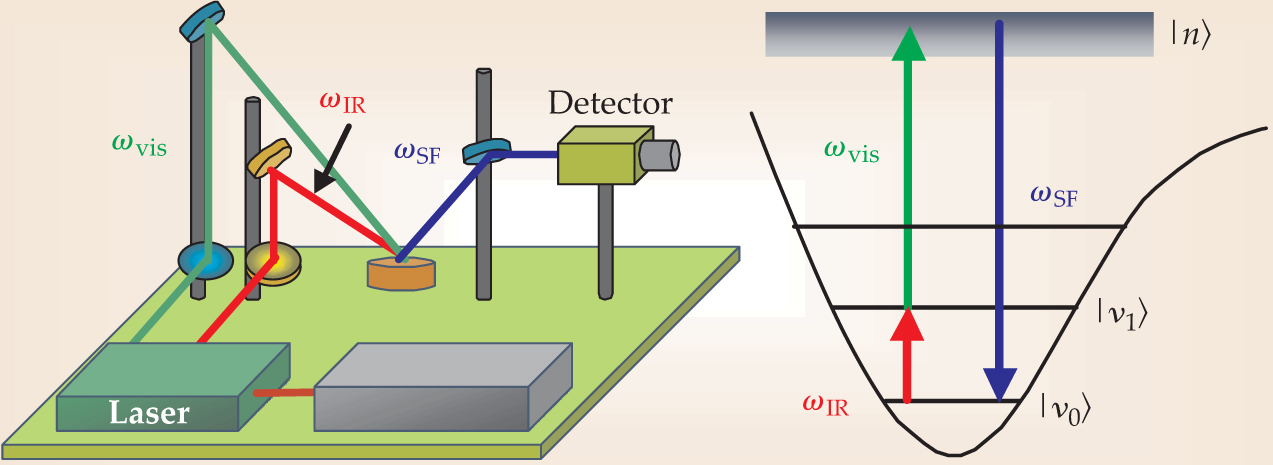

SFG is a nonlinear surface-specific technique developed by Yuen-Ron Shen at the University of California, Berkeley, and used to identify adsorbed molecules by their characteristic vibrational frequencies. ⁸ The experimental setup is shown in figure 2. Two laser beams are overlapped on the surface, one with a fixed visible frequency ω_vis and the other tunable in the IR. When the IR frequency ω_IR coincides with a vibrational frequency of an adsorbed molecule, the molecule absorbs an IR photon and a visible photon and is excited to a high-energy virtual state |n〉. The molecule then emits a photon with the sum frequency ω_SF. The two-photon transition can only occur in a medium that has no inversion symmetry. The interface satisfies that condition, but the bulk and the isotropic gas or liquid phases do not, so SFG detects only those molecules adsorbed on the surface.

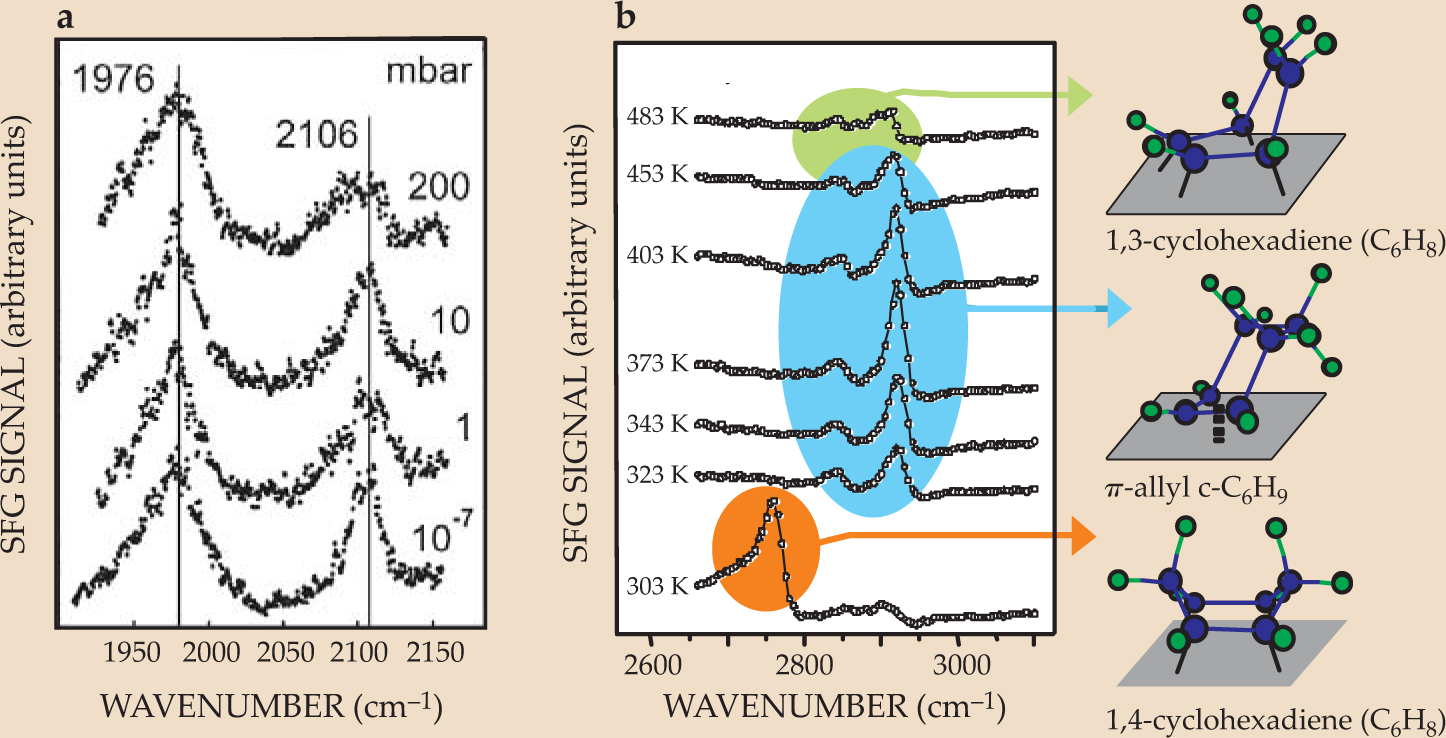

SFG spectra are virtually pressure independent over a wide range of pressures. ⁹ Hans-Joachim Freund and colleagues in the Fritz Haber Institute of the Max Planck Society in Berlin observed that the SFG spectrum of CO on alumina-supported palladium nanoparticles, shown in figure 3(a), did not change over 10 orders of magnitude in pressure. ⁵ But the real power of SFG lies in its ability to distinguish among different molecular species adsorbed on a surface simultaneously. For example, cyclohexene (C₆H₁₀) adsorbed on a surface undergoes two reactions simultaneously: hydrogenation to form cyclohexane (C₆H₁₂) and dehydrogenation to form benzene (C₆H₆). The SFG spectra, shown in figure 3(b), reveal the presence of three intermediates in the dehydrogenation reaction: ⁹ two isomers of cyclohexadiene (C₆H₈) and π-allyl c-C₆H₉.

Because surface-based reaction probabilities vary over many orders of magnitude, high-pressure techniques allow the study of chemical reactions that can’t be seen at low pressures. When beams of hydrogen and deuterium are incident on the step sites of a Pt surface such as the one shown in figure 1(d), the H₂ molecules dissociate with a reaction probability of unity, and the H₂/D₂ exchange reaction H₂ + D₂ → 2HD can take place. ¹⁰ In contrast, when the molecular beams are incident on the surface between the step sites, or on a step-free Pt(111) surface, the dissociation probability is below the detection limit of 10⁻³. At elevated pressures, however, the collision rate of H₂ molecules with the surface is high enough that H₂/D₂ exchange is observable even from the (111) crystal face.

In another dissociation reaction, when methane is incident on a Pt(111) surface, the carbon–hydrogen bonds break, and ultimately a layer of pure carbon is left on the surface. ¹⁰ But the dissociation probability at room temperature is less than 10⁻⁸. That type of reaction simply cannot be detected at low pressures or in vacuum; a practical study of the reaction requires a minimum of 1 torr of methane colliding continuously with the surface. In general, high reactant pressures are needed to access both the chemically active and less chemically active sites on a surface.

Catalysis and selectivity

Solid surfaces, such as those of transition metals and oxides, carry out chemical reactions over and over again until the reaction is complete or the reaction mixture reaches equilibrium. (See the article by Gerhard Ertl and Freund, Physics Today, January 1999, page 32 .) To be called a catalyst, the surface must not be used up or damaged by the reaction. In quantitative terms, a surface qualifies as a catalyst if the catalytic turnover, or total number of product molecules formed per surface site, is more than 100. (Typical catalytic turnovers for surfaces are much higher than that, and can be as great as 10⁶.) The activity of a site is measured by the turnover rate, the number of product molecules formed per site per second. A catalyst is called selective if it favors the formation of one out of several possible product molecules.

A surface acts as a catalyst by rearranging the electrons of the adsorbed molecules, thereby reducing the energy barrier to the reaction. In addition to that electron rearrangement, adsorbate-induced surface reconstruction and the mobility of the adsorbates on the catalyst surface are also essential molecular ingredients of catalytic activity and selectivity. The pressure of the reactant molecules and the surface structure of the catalyst are among the most important variables that affect surface-catalyzed reaction dynamics, with the pressure controlling the reaction probability and the surface structure controlling the nature and concentration of the active sites where the surface reactions occur.

We will briefly describe the surface science of ethylene hydrogenation (H₂CCH₂ + H₂ → H₃CCH₃) and cyclohexene hydrogenation and dehydrogenation (discussed earlier) on single-crystal Pt(111) and (100) surfaces. Platinum is the grandfather of all catalysts: Its catalytic capability was discovered in the early part of the 19th century. It excels as a catalyst because of its high density of electronic states at the Fermi level, from which it donates and accepts electrons during chemical reactions, and because of its resistance to oxidation and change of valence.

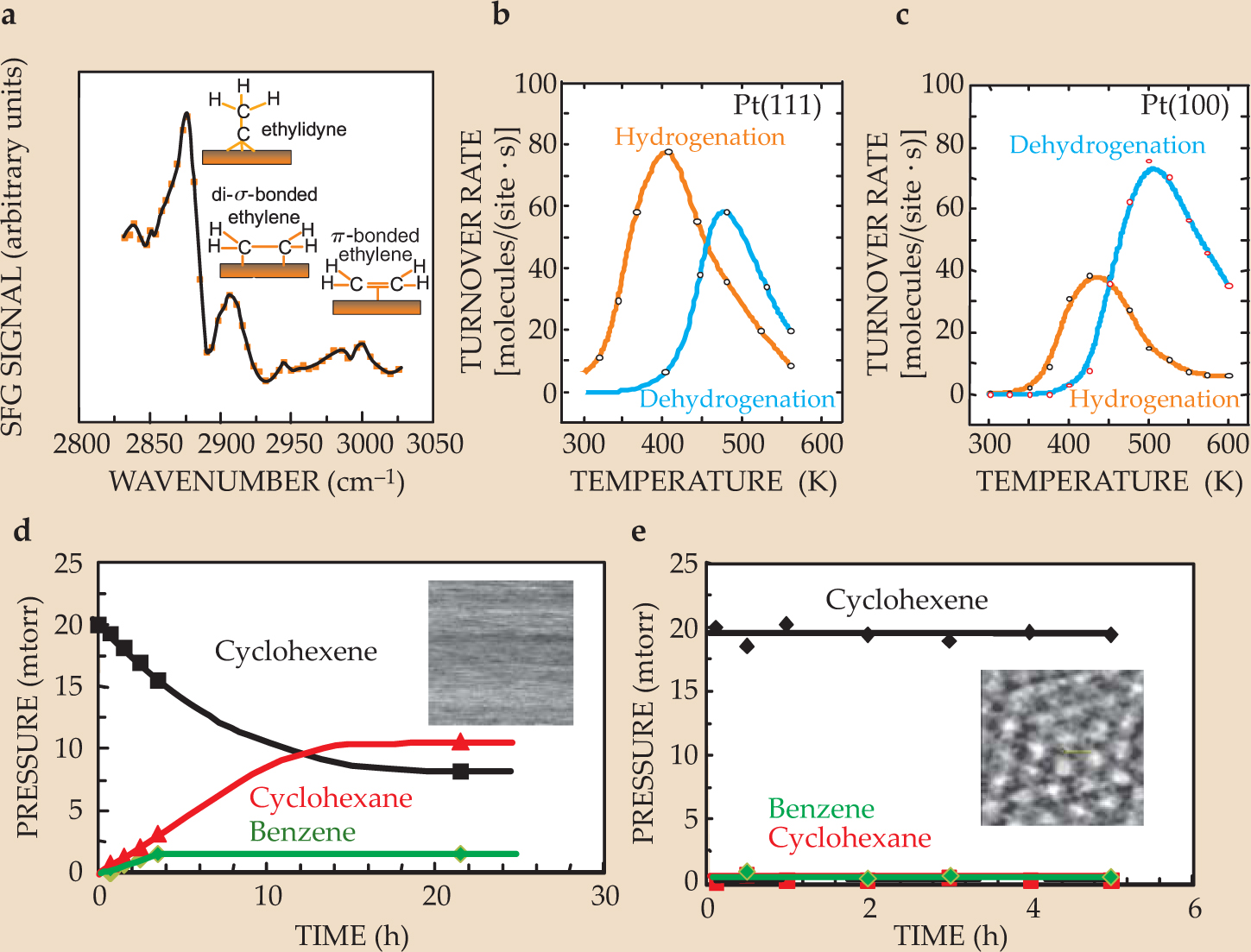

Figure 4(a) shows the SFG spectrum of ethylene during hydrogenation at room temperature under 10 torr of the hydrocarbon and 100 torr of H₂. The turnover rate is 10 ethane molecules per Pt site per second. Three species are detectable: ethylidyne (CCH₃), in which the free carbon atom forms three bonds to the metal surface; di-σ-bonded ethylene, in which each carbon atom forms a bond with the surface; and π-bonded ethylene, in which a metal atom forms a bond with the electrons already participating in the C–C double bond. Isotope-labeling studies reveal that only the weakly bound π-bonded ethylene goes on to form ethane; the other two species are spectators on the metal surface. The Pt(111) and (100) surfaces carry out the reaction at the same rate, which indicates that the active metal sites are the same in structure and concentration on the two metal surfaces. Ethylene hydrogenation is thus known as a structure-insensitive reaction.

Cyclohexene hydrogenation and dehydrogenation, on the other hand, are surface-structure sensitive, as shown by the reaction rates plotted in figures 4(b) and 4(c). The rate of dehydrogenation is faster on the Pt(100) surface than on the (111) surface. ¹¹ SFG spectra of the reaction reveal that two different reaction intermediates to dehydrogenation are present on the (111) surface—1,4-cyclohexadiene and 1,3-cyclohexadiene—whereas only the 1,3-cyclohexadiene is present on the (100) surface. It appears that dehydrogenation is faster via 1,3-cyclohexadiene than via 1,4-cyclohexadiene. The availability of the additional, slower reaction channel on the (111) surface is what slows the reaction.

The cyclohexene reactions also demonstrate the importance of molecular mobility on the surface. Figure 4(d) shows the normal progress of the hydrogenation and dehydrogenation, and the inset is an STM image of the surface during the reaction. The image shows no discernable surface structure, which means that the adsorbed molecules are moving around too fast for the STM tip to detect their positions. Figure 4(e) shows what happens when CO molecules are added to the reaction mixture. The adsorbed molecules are fixed in place, and the reaction stops abruptly. CO thus acts as a catalytic poison: By limiting the adsorbates’ mobility on the surface, it robs the catalyst of its ability to carry out the reaction. ¹¹

From single crystals to nanoparticles

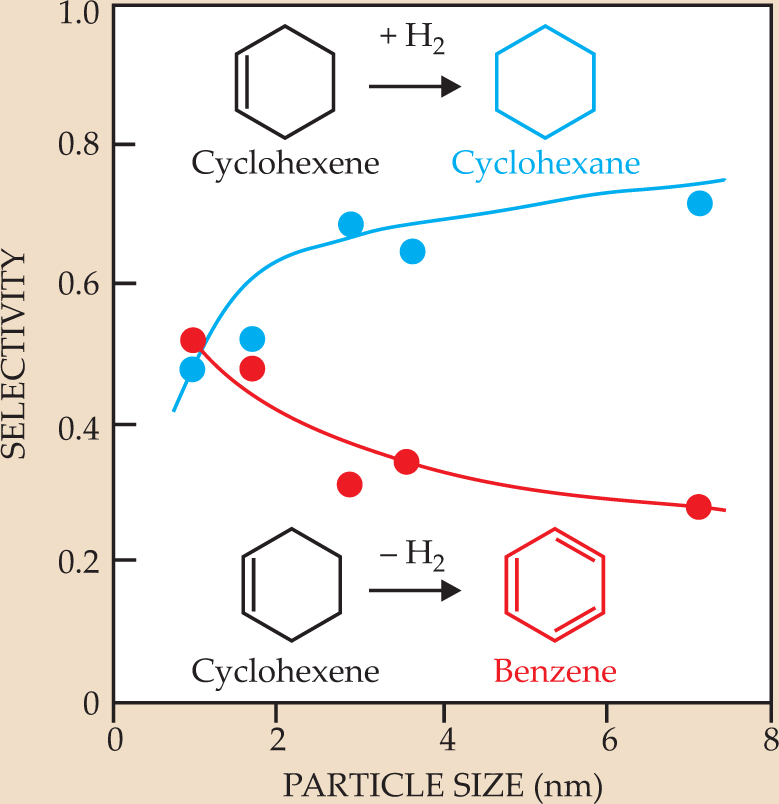

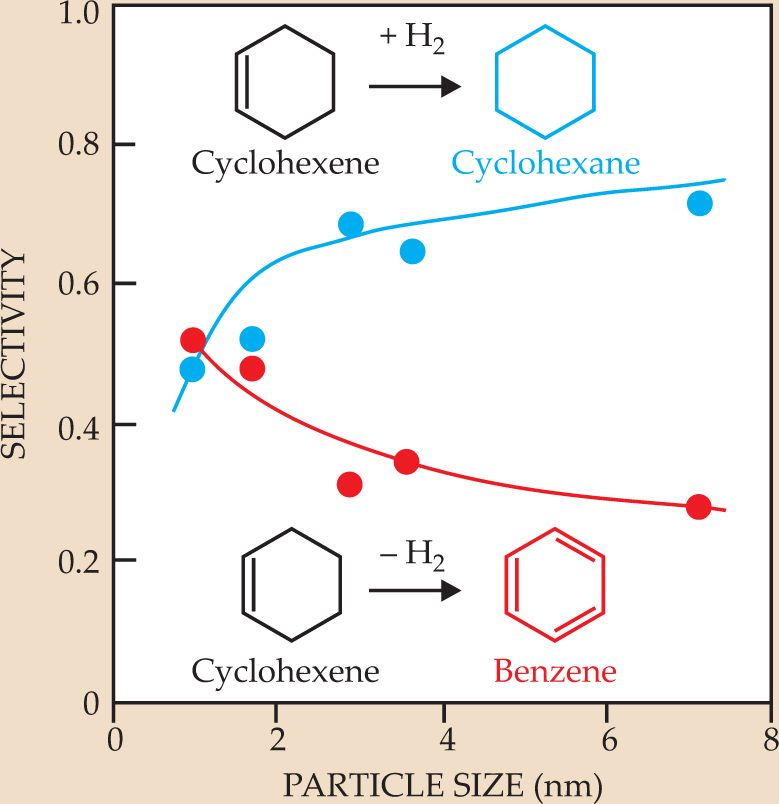

Just as the surface of a single crystal can act as a catalyst, so can the surfaces of nanoparticles. A nanoparticle array contains new degrees of freedom—the particle size and shape, and the interface sites between the metal particles and the oxide surface on which they are deposited—that affect the reaction output. Figure 5, for example, shows the dependence of the cyclohexene hydrogenation/dehydrogenation reaction on the size of the platinum-nanoparticle catalyst. That dependence of the reaction products is probably due to the concentration of defects in the metal nanoparticles and the particles’ rapid reconstruction because of their many lower-coordination surface atoms. Control over nanoparticles’ catalytic properties allows for greater reaction selectivity and smaller amounts of waste byproducts.

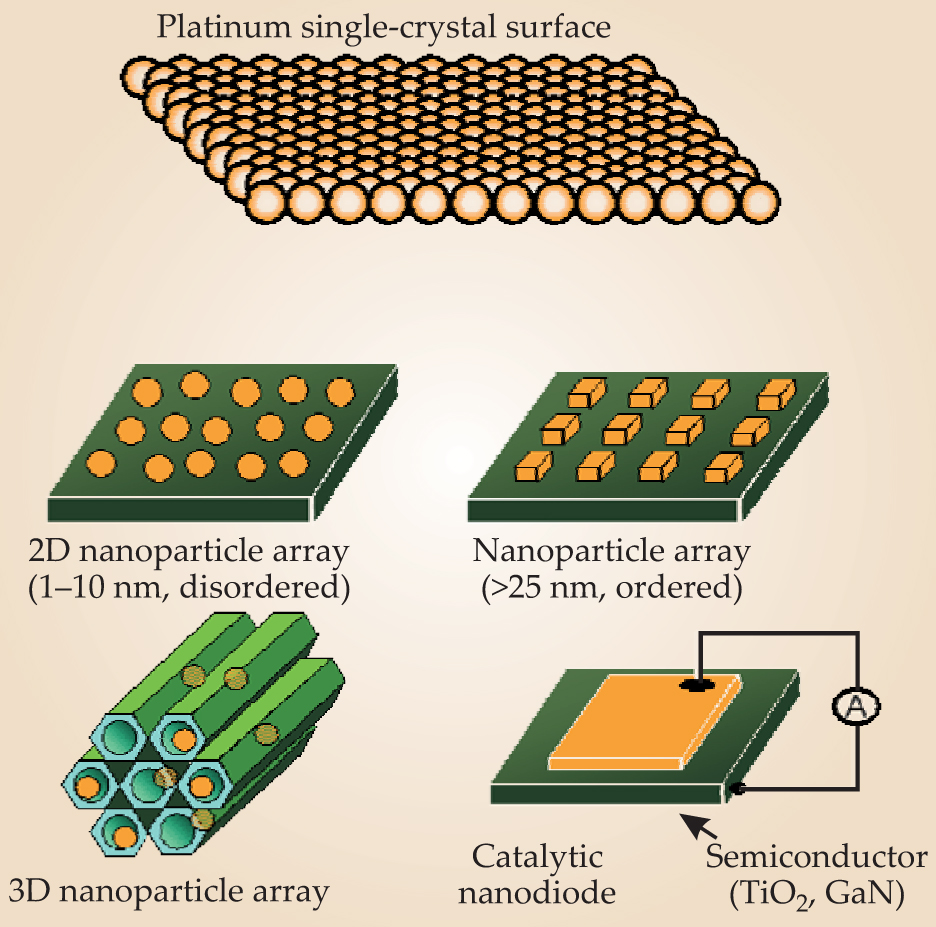

Figure 6 illustrates some of the possibilities for nanostructure catalysts. Nanoparticles are usually prepared by colloid synthesis and capped with a polymer to prevent aggregation in solution. (The polymer cap is porous and allows molecules to enter and exit to undergo catalytic reactions, although some of the metal sites can be blocked.) Two-dimensional arrays of nanoparticles affixed to a substrate can be prepared by the Langmuir–Blodgett technique, ¹² described in the box on page 52, which was developed as a way of preparing monolayers of molecules. Three-dimensional nanoparticle arrays can be prepared by depositing nanoparticles in a mesoporous oxide framework. Such arrays exhibit high catalytic turnover due to the high metal surface area. A host of 2D nanostructures, including particles, wires, and diodes, can be fabricated by lithography and electron-beam evaporation.

A major advantage of using a diverse range of nanostructures stems from the catalytic activity of the interface between the metal nanostructures and the oxide substrate. Changing the geometry of that interface can allow additional control over activity and selectivity. Chemists have known for decades that when metal nanoparticles are affixed to a catalytically inactive oxide surface, the catalytic turnover rate of the array is more than 10 times that of a metal surface alone. Researchers have exploited that phenomenon empirically by testing different metal–oxide combinations, without fully understanding the mechanism behind the effect.

Subsequent research has attributed the origin of the oxide–metal interface activity to energetic hot electrons generated at the metal surfaces. When an exothermic chemical reaction is catalyzed by a metal surface, some of the energy released by the reaction is carried away by electrons with kinetic energies of 1–3 eV. In a macroscopic metal structure, the electrons are quickly thermalized, but if the metal’s dimensions are less than 5–10 nm, some of the hot electrons are able to escape the metal and enter the oxide. (Hot electrons generated by nanoparticles in solar cells can be captured to increase the energy conversion efficiency; see the article by George Crabtree and Nathan Lewis, Physics Today, March 2007, page 37 .) Once the electrons thermalize in the oxide, they are no longer energetic enough to overcome the energy barrier, called the Schottky barrier, to reenter the metal. The hot-electron flow at the oxide–metal interface opens up a new reaction channel, which competes with the reaction catalyzed by the metal surface and thus modifies the catalytic turnover rate and selectivity.

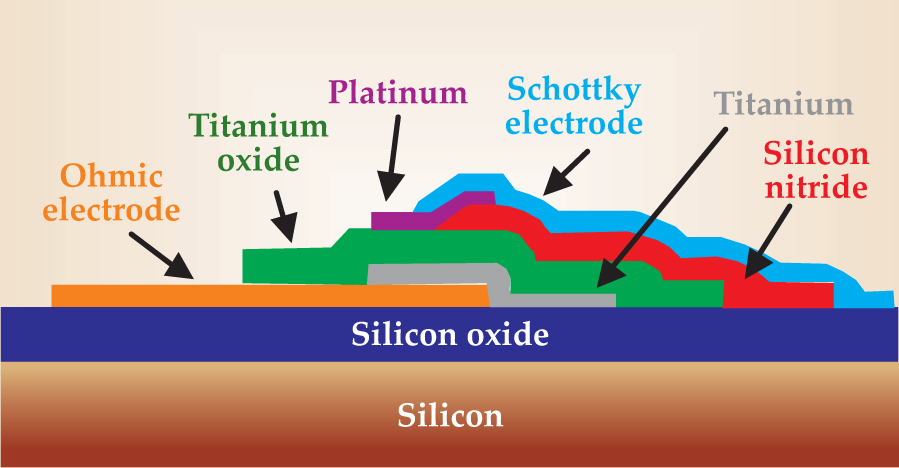

The flow of hot electrons generated by a surface-catalyzed reaction can be observed with the help of a catalytic nanodiode, ¹³ such as the one shown in figure 1(d). A reaction, such as CO oxidation (2CO + O₂ → 2CO₂), is catalyzed by the surface of the 5-nm-thick Pt film. Hot electrons are transferred to the titanium oxide and are drawn off by the electrode connected to an external lead. The result is an overall electron flow known as a chemicurrent. As the temperature and other conditions are varied, the reaction rate and the chemicurrent both change, but they remain proportional to each other. The correlation between the reaction rate and the chemicurrent suggests the intriguing possibility that by externally manipulating the current through the diode, one can control the catalytic turnover rate and perhaps also the reaction selectivity.

Outlook

The developments we have described in this article—the introduction of instruments for studying surfaces at high pressures and the growing understanding of the degrees of freedom offered by nanoparticle systems—opened up opportunities for molecular-level studies in many applications of surface science. Those applications, includingcatalysis, energy conversion, tribology, and polymer surfaces, have given rise to active fields of their own that are growing rapidly as molecular studies reveal new mechanistic information.

Our focus here has been on solid–gas interfaces, but the study of solid–liquid interfaces is an equally active and important research area, due especially to applications in biophysics and electrochemistry. Devices such as contact lenses and artificial heart valves introduce new interfaces into the human body for the sake of increasing the quality and quantity of life. The challenge is making the devices biocompatible to prevent rejection by the body—and biocompatibility appears to correlate with the adsorption of proteins and pep-tides, their surface structure, and their orientation. In the field of surface electrochemistry, researchers are devising ways to monitor the surface structure and the orientation of adsorbed molecules as a function of applied potential. That ability is exploited in the study of corrosion, with the goal of understanding and controlling environmental damage.

The future has never been brighter for surface science. When it is combined with nanosciences to yield an understanding of the atomic and electronic structures of nanoparticles along with their optical, magnetic, and electrical properties, it is likely to become a dominant field, in both pure and applied sciences, for many years to come.
